Hyundai Elantra (CN7): Roof Trim / Assist Handle

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Roof Trim / Assist Handle

Components and components location

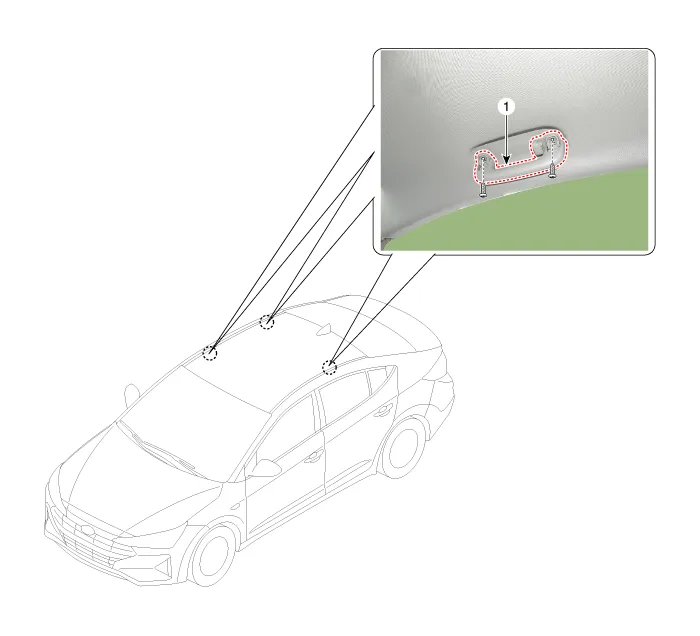

Component Location

1. Assist handle


Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

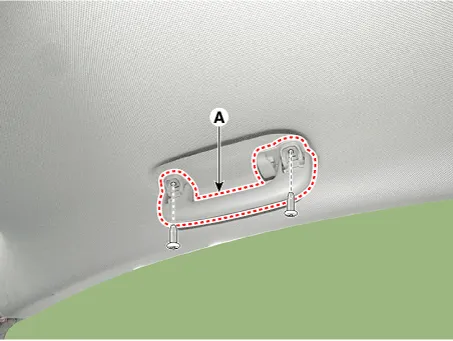

After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).

2.
To install, reverse the removal procedure.
