| Removal |
| 1. | Turn the ignition switch OFF and disconnect the negative (-) battery cable. |

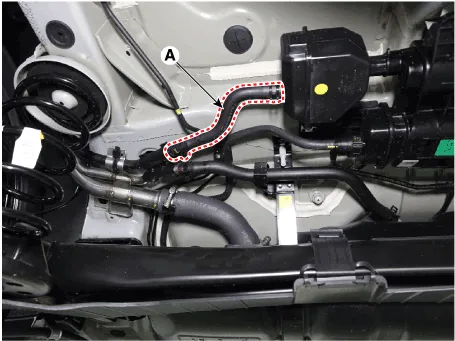

| 2. | Disconnect the vent hose (A).
|

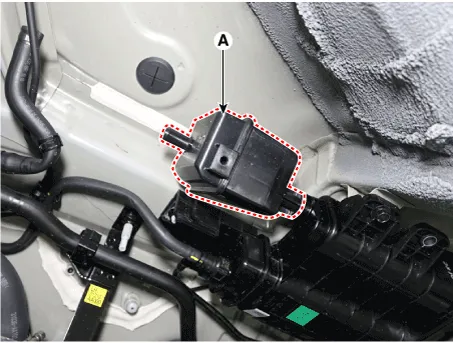

| 3. | Remove the fuel tank air filter (A) by rotating it 30 degrees.
|
| 4. | Disconnect the vapor hose quick-connectors (A).
|
| 5. | Remove the canister (A).
|
| Inspection |
| 1. | Check for the following items visually.

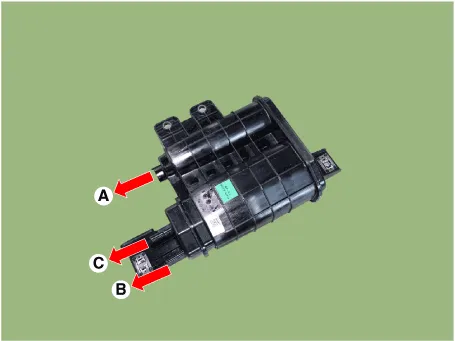

A : Canister ↔ Atmosphere B : Canister ↔ Fuel Tank C : Canister ↔ Intake Manifold |
| Installation |
| 1. | Install in the reverse order of removal. |
