Components

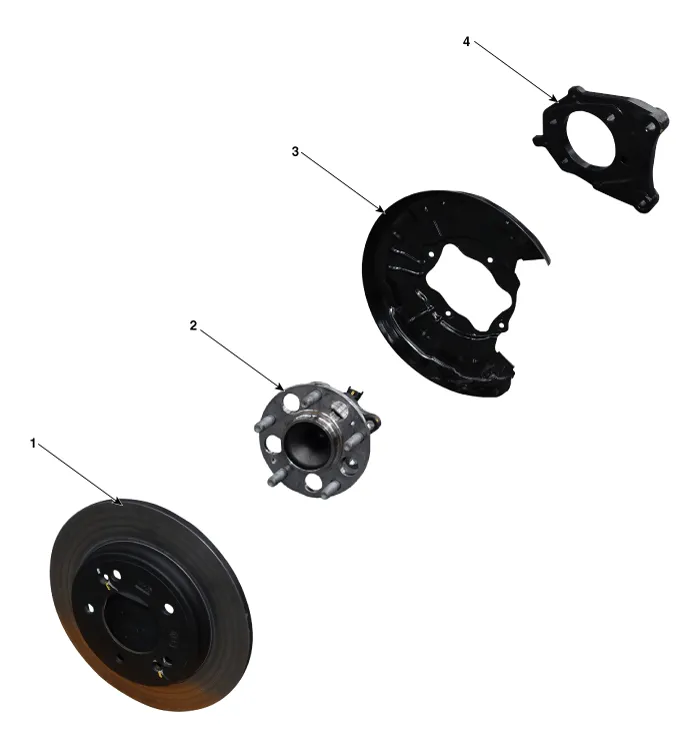

[Rear disc brake type]

1. Rear brake disc
2. Hub bearing assembly
3. Dust cover
4. Rear carrier

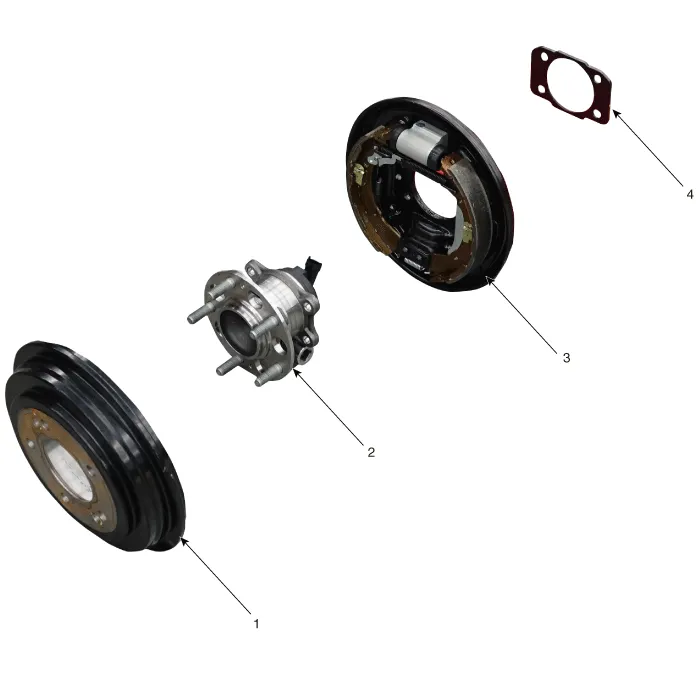

[Rear drum brake type]

1. Rear drum
2. Rear hub assembly
3. Brake assembly
4. Spacer

    Removal[Rear disc brake type]1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub.
