Hyundai Elantra (CN7): Seat Belt Pretensioner. Seat Belt Pretensioner (BPT) / Components and components location
Hyundai Elantra (CN7) 2021-2025 Service Manual / Restraint / Seat Belt Pretensioner. Seat Belt Pretensioner (BPT) / Components and components location

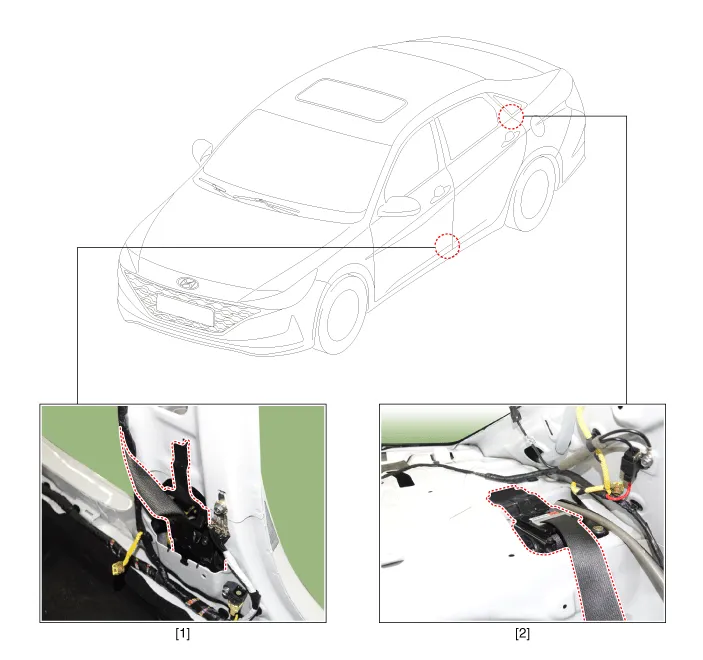

| Components |
| 1. Front seat Belt Pretensioner (BPT) | 2. Rear seat Belt Pretensioner (BPT) |
DescriptionThe Seat Belt Pretensioners (BPT) are installed inside center pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner seat belt helps to reduce the severity of injury to the front seat occupants by retracting the seat belt webbing.
Removal [Front Seat Belt Pretensioner (BPT)]1.Disconnect the negative (-) battery terminal.2.Remove the door scuff trim.(Refer to Body (Interior and Exterior) - "Door Scuff Trim")3.
