Hyundai Elantra (CN7): Front Bumper / Components and components location
| Components |

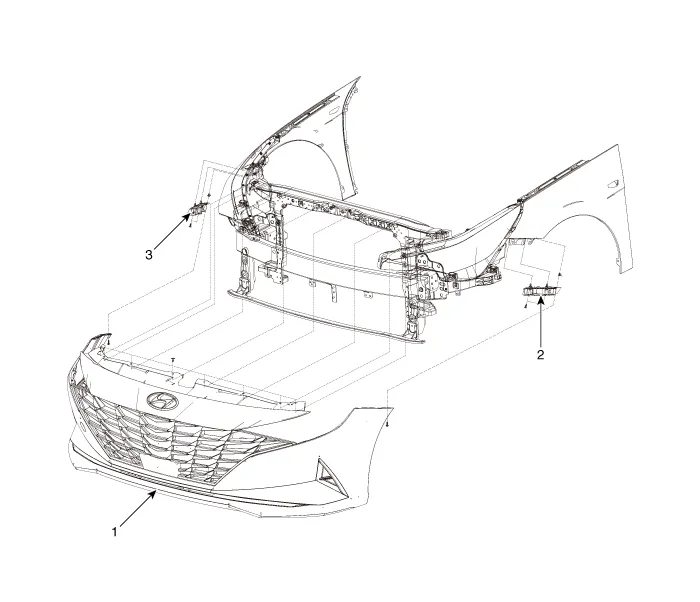

| 1. Front bumper assembly 2. Front bumper side bracket [LH] | 3. Front bumper side bracket [RH] |

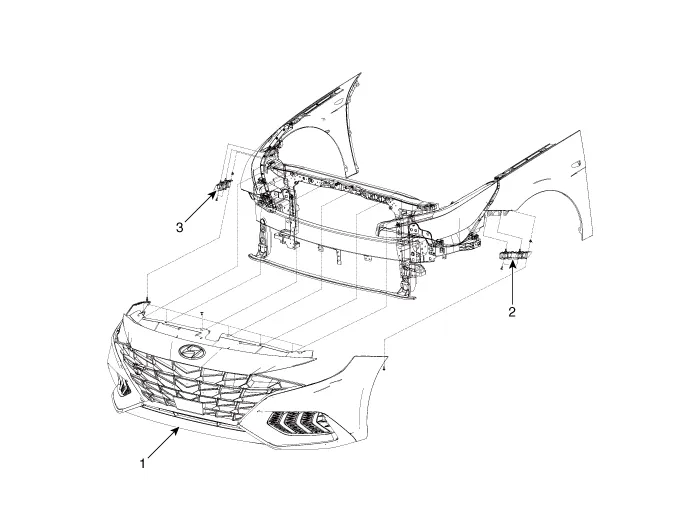

| 1. Front bumper assembly 2. Front bumper side bracket [LH] | 3. Front bumper side bracket [RH] |
Components and components location Component Location [General type]1. Front bumper Assembly[N Line]1. Front bumper assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
