Repair procedures

Removal and Installation
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
3.

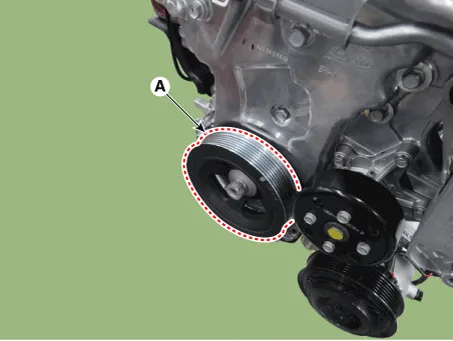

Remove the crankshaft damper pulley (A).
Tightening torque :
66.7 - 70.6 N.m + 98 - 102°[6.8 - 7.2 kgf.m + 98 - 102°, 49.2 - 52.1 lb-ft + 98 - 102°]


•

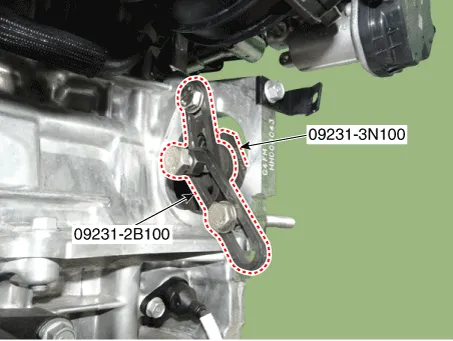

Fix the ring gears using the SST(09231-2B100,09231-3N100) after removing thestarter. Then remove the crankshaft damperpulley.

4.
Install in the reverse order of removal.
Inspection
Check the crankshaft damper pulley for vibration in rotation, oil or dust deposit of V-ribbed part. Replace if necessary.
