Hyundai Elantra (CN7): Front Bumper / Front Bumper Assembly

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Assembly

Components and components location

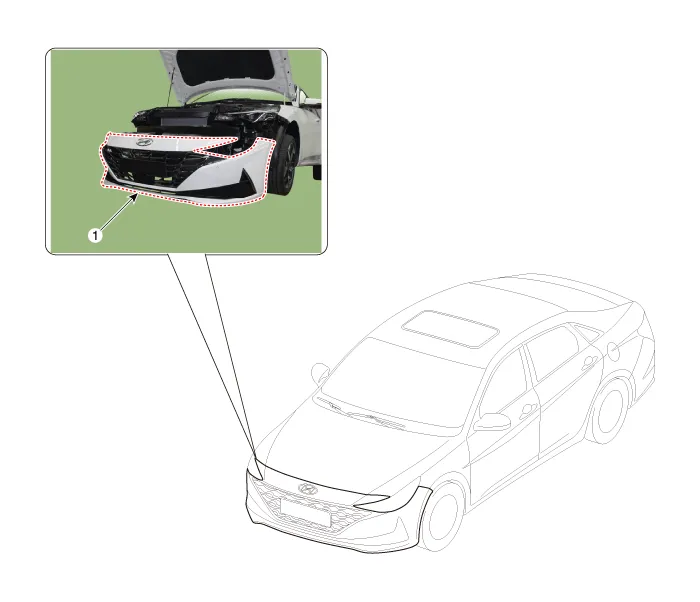

Component Location

[General type]

1. Front bumper Assembly

[N Line]

1. Front bumper assembly

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Take care not to bend or scratch the bumper cover and panels.

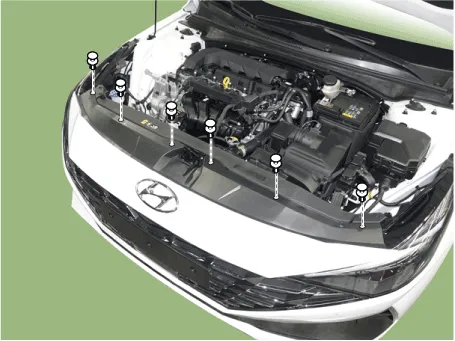

1.	Loosen the front bumper upper mounting clips.

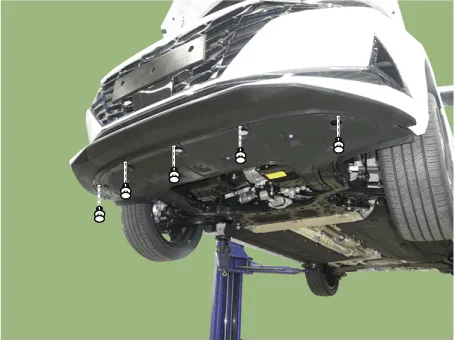

2.	Loosen the front bumper lower mounting clips.

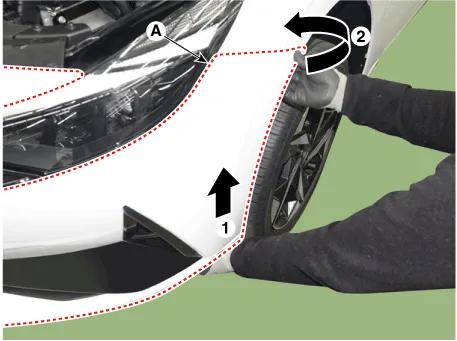

After loosening the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper.

•	Be careful not to damage the tabs on the side part of front bumper (A).

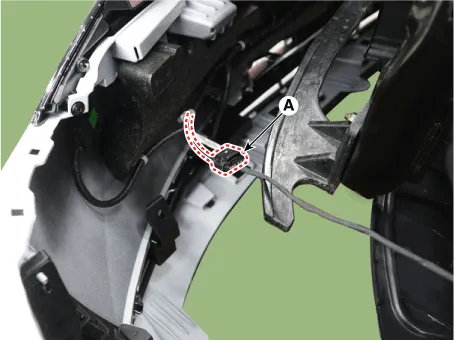

4.	Disconnect the front bumper main connector (A).

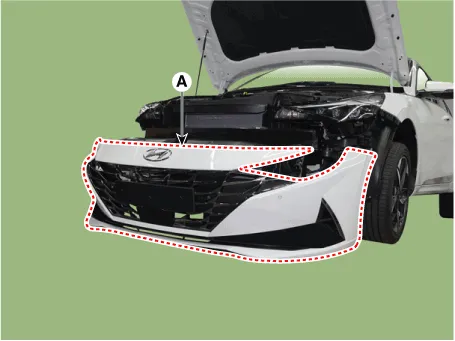

5.	Remvoe the front bumper assembly (A). [General type] [N Line]

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Replace any damaged clips (or pin - type retainers).
