Hyundai Elantra (CN7): Hood / Hood Assembly

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly

Components and components location

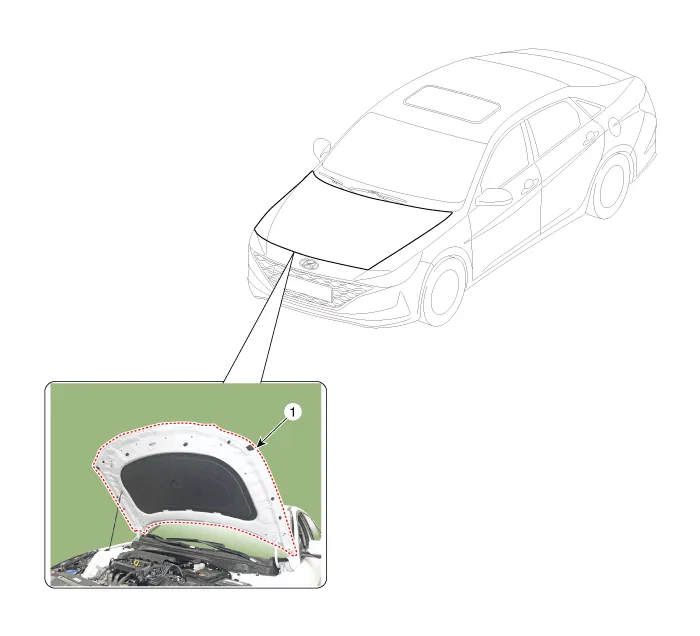

Component Location

1. Hood assembly

Repair procedures

Replacement

•	Removing or installing the hood requires an assistant.

•	Be careful not to damage the hood and body.

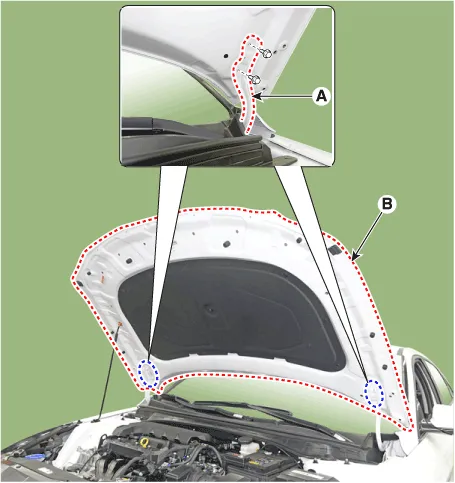

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

Tightening torque :

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

To install, reverse the removal procedure.

•	Make sure the hood locks / unlocks and opens / closes properly.

•	Adjust the hood alignment.
