Hyundai Elantra (CN7): Mirror / Inside Rear View Mirror

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror

Components and components location

Component Location

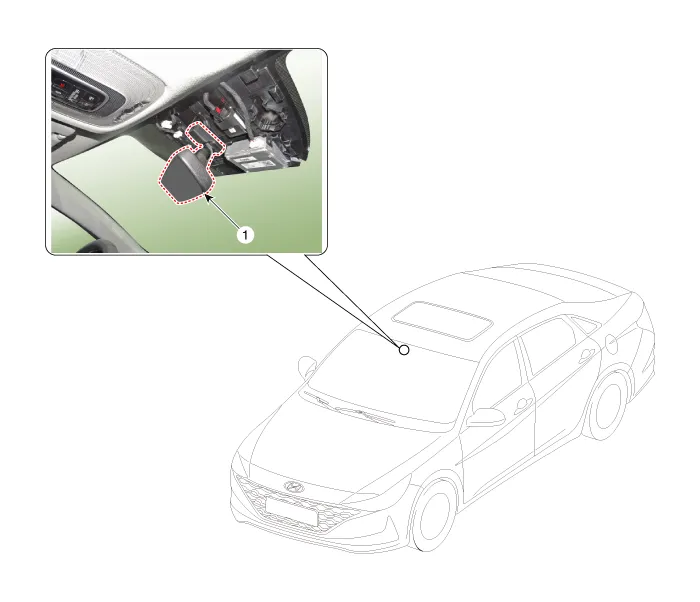

1. Inside rear view mirror


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

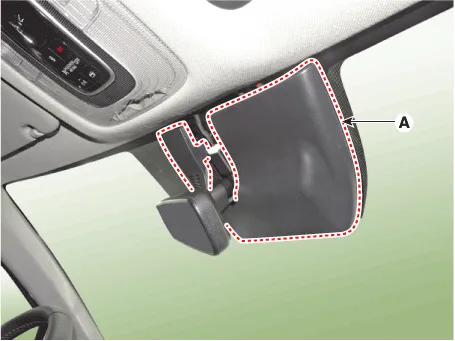

Remove the inside rear view mirror cover (A).

2.

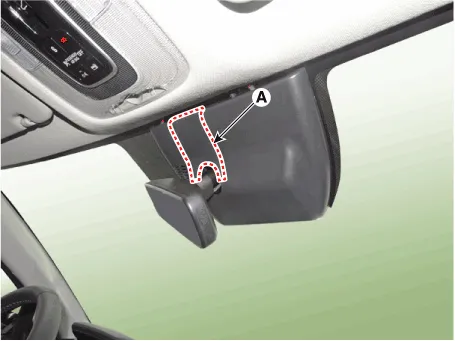

Using a screwdriver or remover, remove the rain sensor cover (A).

3.

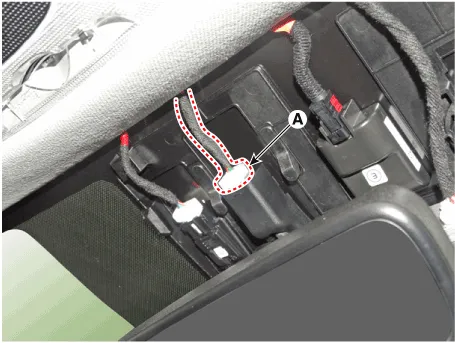

Disconnect the inside rear view mirror connector (A).

4.

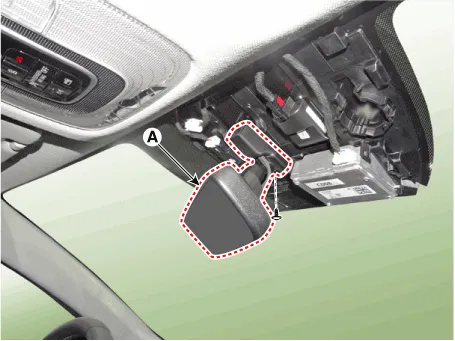

Loosen the mounting screw and push the inside rear view mirror base upward to remove the inside rear view mirror assembly (A).

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Be careful not to damage the windshield glass.
