Components and components location

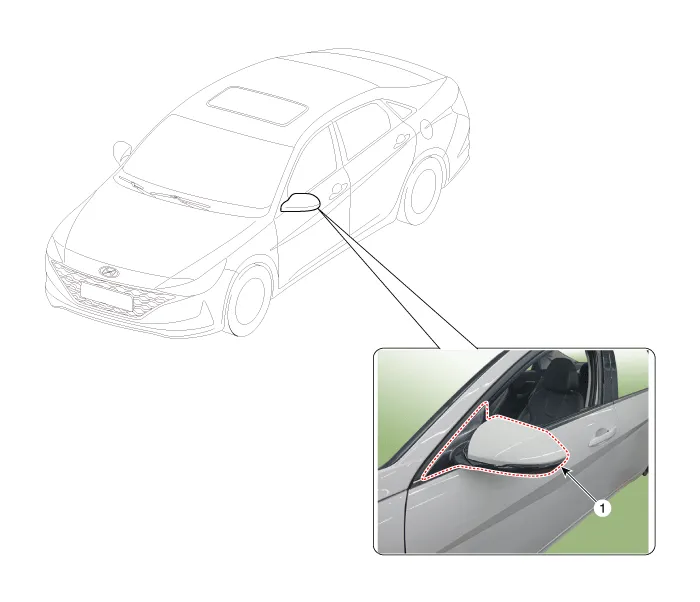

Component Location

1. Outside rear view mirror


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.
Disconnect the outside rear view mirror connector (A).

3.
After loosening the mounting nuts, remove the outside rear view mirror (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

4.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin - type retainers).
