Hyundai Elantra (CN7): Front Bumper / Radiator Grill

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Bumper / Radiator Grill

Components and components location

Component Location

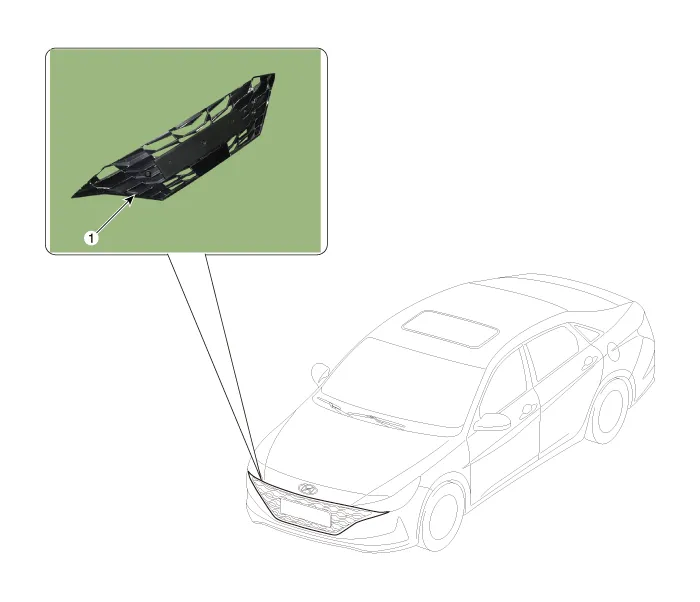

1. Radiator grill


Repair procedures

Replacement
[General type]

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the bumper cover and panels.
1.
Remove the front bumper assembly.
(Refer to Front Bumper - "Front Bumper Assembly")
2.
Detach the wiring (A) mounted on the front bumper assembly and energy absober.

3.
Remove the front bumper energy absorber (A).

4.
Loosen the mounting screws, remove the radiator grill (A).

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
[N Line]

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the bumper cover and panels.
1.
Remove the front bumper assembly.
(Refer to Front Bumper - "Front Bumper Assembly")
2.

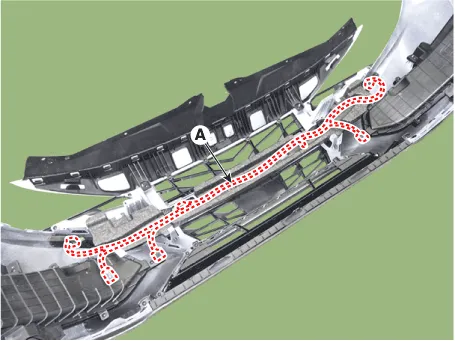

Detach the wiring (A) mounted on the front bumper assembly and energy absober.

3.
Remove the front bumper energy absorber (A).

4.

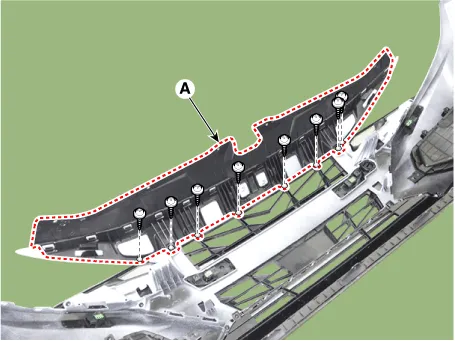

Loosen the mounting screws, remove the radiator grill upper cover (A).

5.

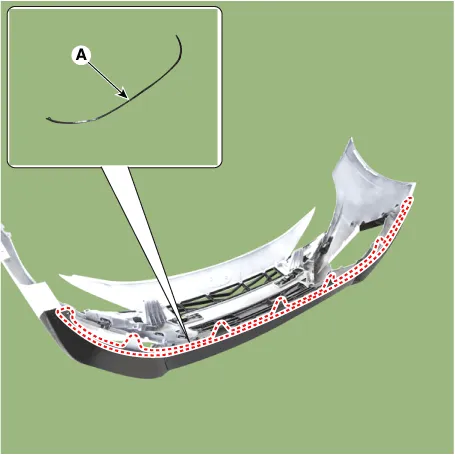

Remove the front bumper lip (A).

6.

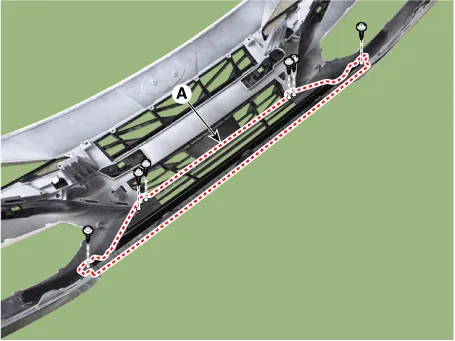

Loosen the mounting screws, remove the front bumper grill (A).

7.
Loosen the mounting screws, remove the front bumper molding (A).

8.
Loosen the mounting screws, remove the radiator grill (A).

9.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
