Hyundai Elantra (CN7): Rear Bumper / Rear Bumper Assembly

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper Assembly

Components and components location

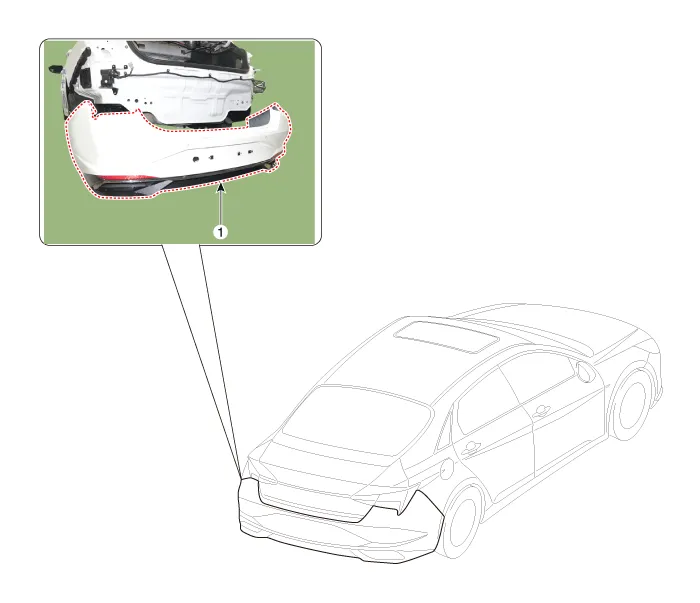

Component Location

1. Rear bumper assembly


Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the bumper cover and panels.
1.
Using a screwdriver or remover, remove the service cover (A).

2.
Detach the rear combination lamp connector (A).

3.

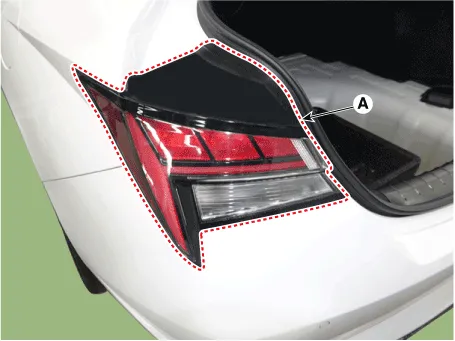

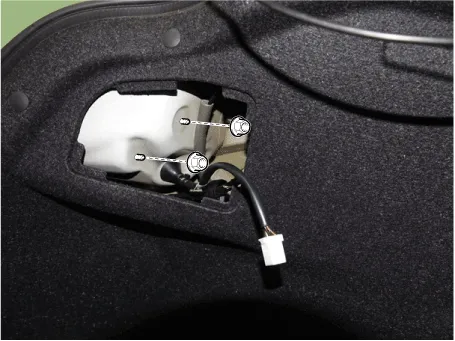

Remove the rear combination mounting nuts and remove the rear combination lamp (A).

4.

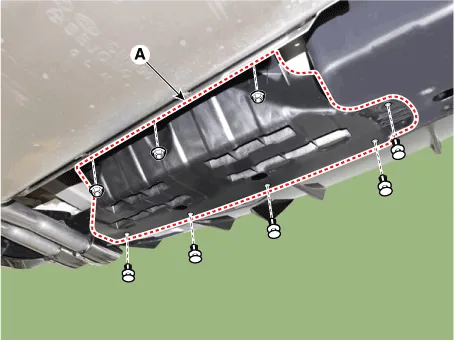

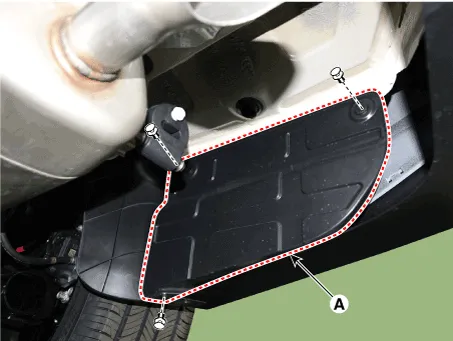

Loosen the mounting nuts and clips, remove the rear bumper under cover (A).
[General type]
[LH]

[RH]

[N Line]
[CTR]

[LH]

[RH]

5.

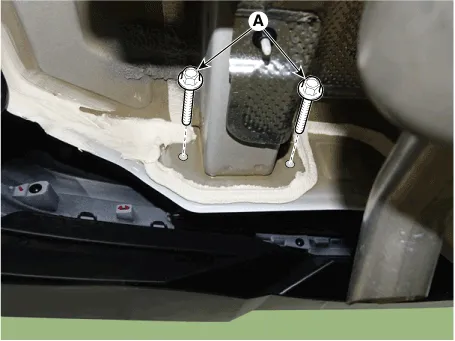

Loosen the rear bumper assembly mounting bolts (A).
[LH]

[RH]

6.

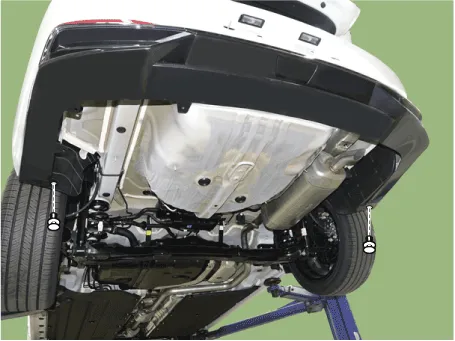

Loosen the rear bumper lower mounting clips.

7.
Remove the rear bumper upper mounting clips and bolts.

8.

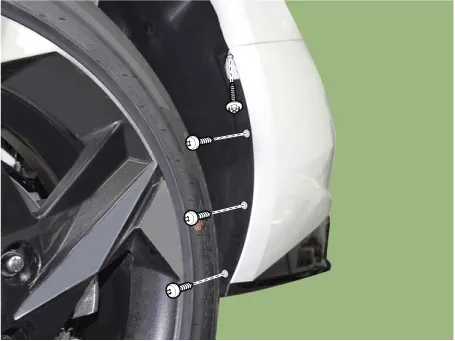

Loosen the mounting screws on the side of rear bumper (A), detach the side part of rear bumper.

•

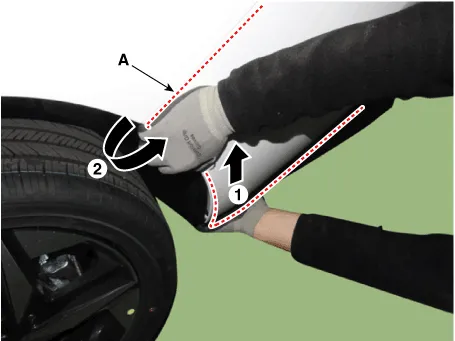

Be careful not to damage the tabs on the side part of front bumper (A).

9.

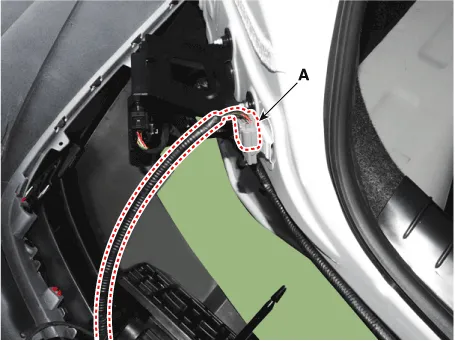

Disconnect the rear bumper connector (A).

10.
Remove the rear bumper assembly (A).

11.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin - type retainers).

    Component Location [General type]1. Rear bumper assembly2. Rear bumper under cover [LH]3. Rear bumper under cover [RH]4. Rear bumper side bracket[N Line]1.
