Hyundai Elantra (CN7): Rear Bumper / Rear Bumper beam Assembly

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper beam Assembly

Components and components location

Component Location

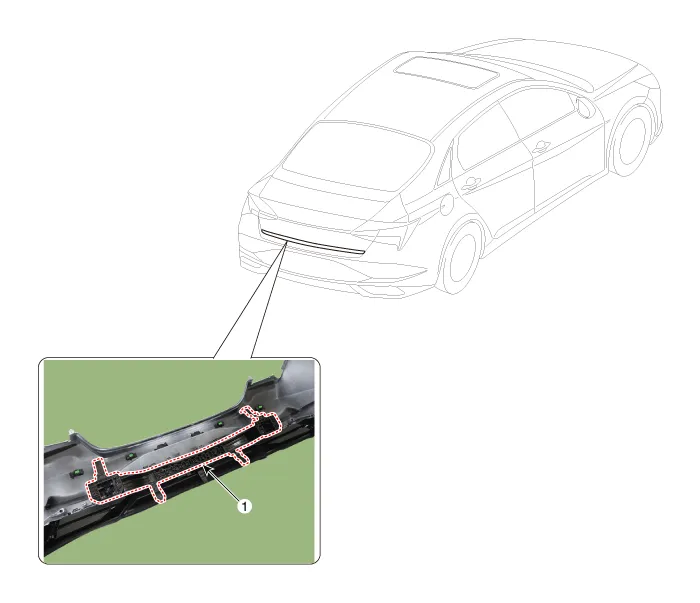

1. Rear bumper beam assembly


Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to protect your hands.

•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear bumper assembly.
(Refer to Rear Bumper - "Rear Bumper Assembly")
2.

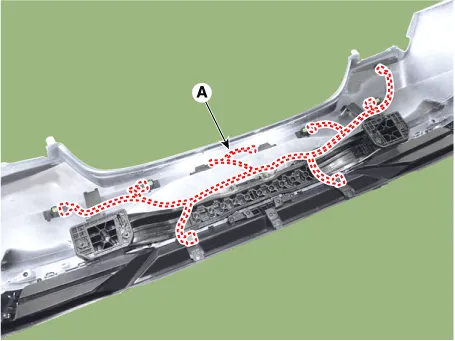

Press the lock pin, then detach the connector, remove the wiring hanes (A).

3.

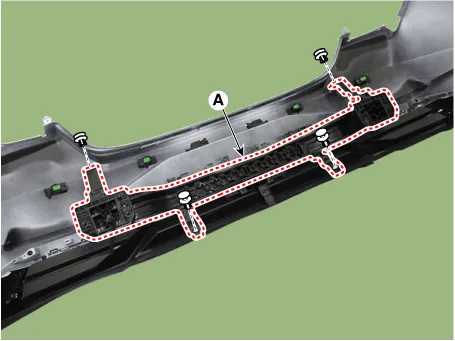

Remove fixing clips, then remove the rear bumper beam assembly (A).

4.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin - type retainers).

    Components and components location Component Location1. Rear bumper assembly Repair procedures Replacement    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
