Hyundai Elantra (CN7): Rear Seat Belt / Rear Center Seat Belt Retractor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor

Components and components location

Component Location

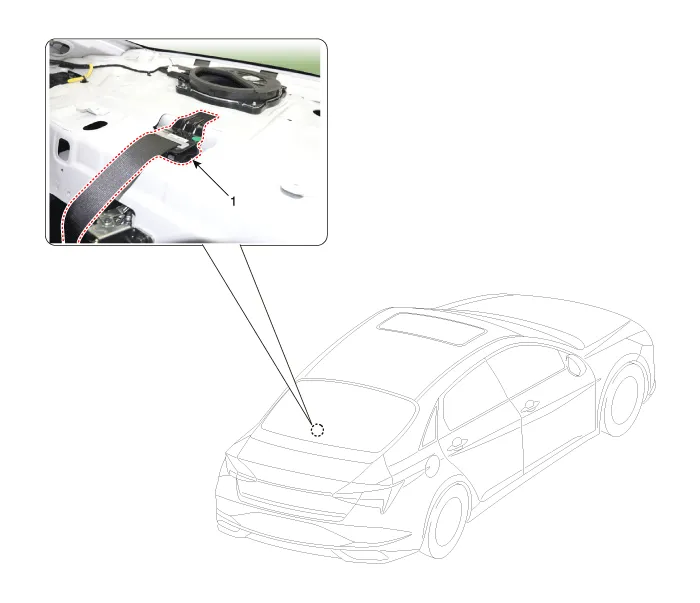

1. Rear center seat belt retractor

Repair procedures

Replacement

•	When installing the belt, make sure not to damage the retractor.

1.	Remove the package tray trim. (Refer to Interior Trim - "Rear Package Tray Trim")

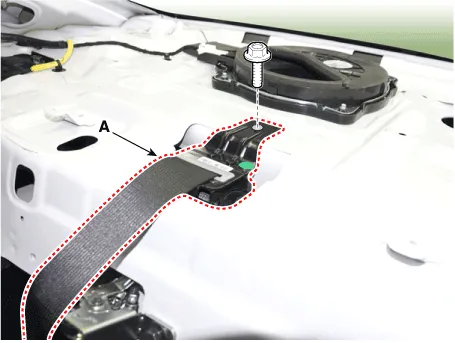

After loosening the mounting bolts, remove the rear center seat belt retractor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	Replace any damaged clips.
