Hyundai Elantra (CN7): Body Side Molding / Rear Mud Guard

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Mud Guard

Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

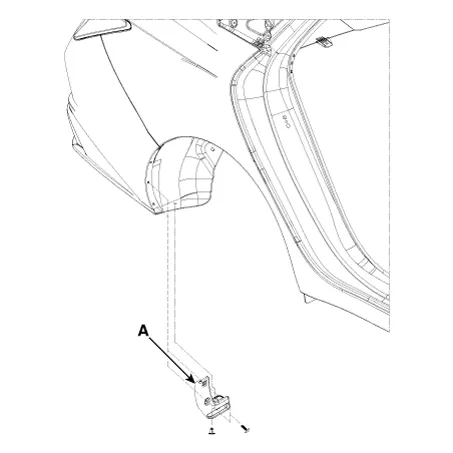

After loosening the mounting screws and remove the rear mud guard (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
