Hyundai Elantra (CN7): Body Side Molding / Rear Wheel Guard

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Wheel Guard

Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the rear tire.
2.

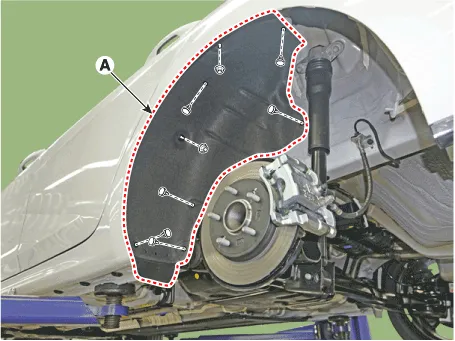

After loosening the mounting screws, clips and nut, remove the rear wheel guard [Rear] (A).

3.
After loosening the mounting screws, clips and nut, remove the rear wheel guard [Front] (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
