Hyundai Elantra (CN7): Horn / Repair procedures

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Horn / Repair procedures

Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.
Remove the bolts and disconnect the horn connectors (A), then remove the horn (B).

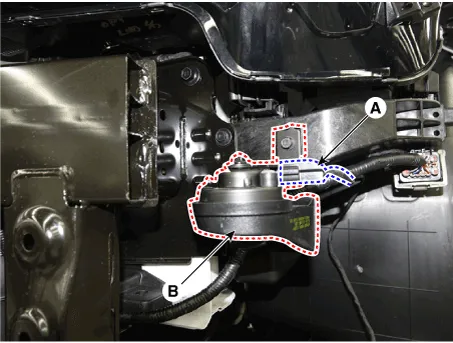

[Low pitch]

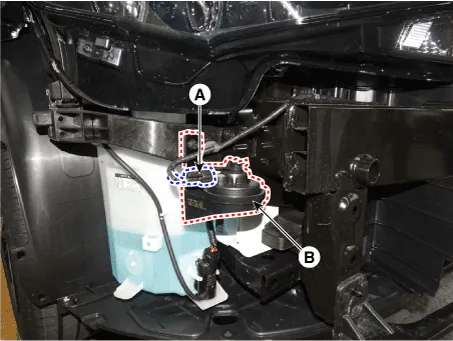

[High pitch]

Installation
1.
Install the horns after connect the horn connectors.
2.
Install the front bumper cover.

    Component Location1. Horn switch2. Horn relay (Engine room compartment)3. Horn (Low pitch)4. Horn (High pitch)5. Clock spring
