| Component Location |

| 1. Roof Trim Assembly |
| Replacement |
|
|
| 1. | Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. | Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly") |
| 3. | Remove the front pillar trim. (Rear to Interior Trim - "Front Pillar Trim") |
| 4. | Remove the canter pillar upper trim. (Rear to Interior Trim - "Center Pillar Trim") |
| 5. | Remove the rear pillar trim. (Rear to Interior Trim - "Rear Pillar Trim") |
| 6. | Remove the sunvisor and retainer. (Rear to Roof Trim - "Sunvisor") |
| 7. | Remove the assist handle. (Rear to Roof Trim - "Assist Handle") |
| 8. | Remove the overhead console lamp. (Rear to Body Electrical System - "Overhead Console Lamp") |
| 9. | Remove the room lamp. (Rear to Body Electrical System - "Room Lamp") |
| 10. | Disconnect the rear view mirror connector. (Refer to Body Electrical System - "Electro Chromic Inside Rear View Mirror") |
| 11. | Disconnect the rain sensor connector. (Refer to Body Electrical System - "Rain Sensor") |

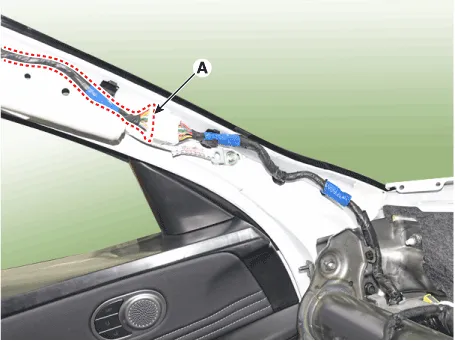

| 12. | Disconnect the roof trim main connector (A) and the mounting clips in the front pillar. [LH]
[RH]
|

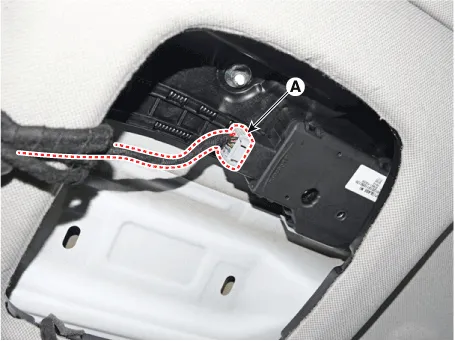

| 13. | Disconnect the sunroof motor connector (A).
|
| 14. | Remove the rear window galss. (Refer to "Windshield Glass") |

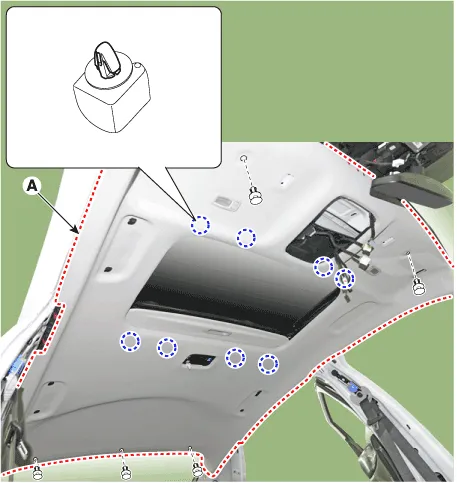

| 15. | Remove the roof trim mounting clip and remove the roof trim assembly (A).
|

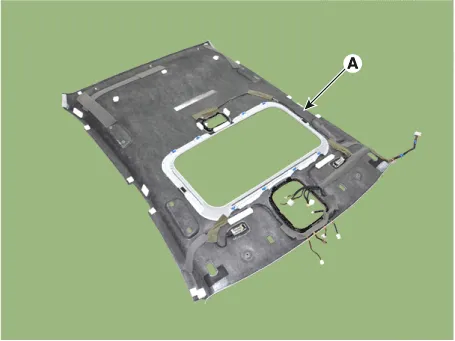

| 16. | Remove roof trim wiring harness (A) from the roof trim.
|
| 17. | To install, reverse the removal procedure.
|
Components and components location Component Location 1. Assist handle Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Schematic diagrams Schematic Diagrams Repair procedures Replacement1.Disconnect the negative (-) battery terminal.2.Remove the crash pad lower panel (A).(Refer to Body - "Crash Pad Lower Panel")3.Loosen the mounting screw and remove the crash pad lower switch (A).
