Hyundai Elantra (CN7): Roof Trim / Sunvisor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor

Components and components location

Component Location

1. Sunvisor

2. Retainer

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Take care not to bend or scratch the trim and panels.

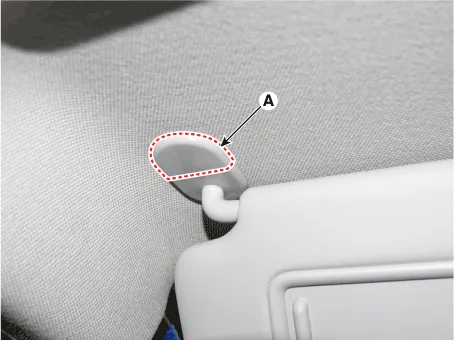

1.	Using a screwdriver or remover, remove the sunvisor pivot cover (A).

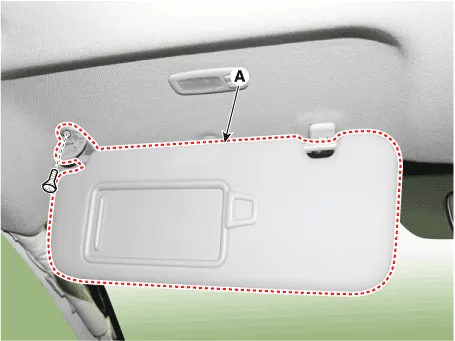

2.	Loosen the mounting screws, remove the sunvisor (A).

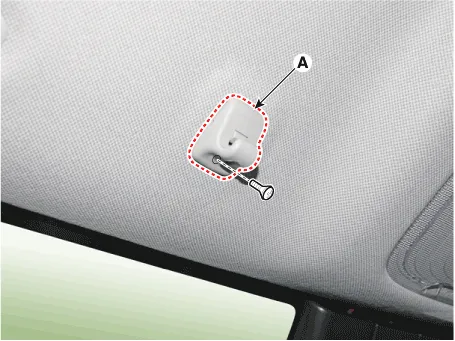

3.	Loosen the mounting screw, remove the retainer (A).

4.	Install in the reverse order of removal.
