Hyundai Elantra (CN7): Front Axle Assembly. Front Hub / Knuckle / Tone Wheel / Components and components location

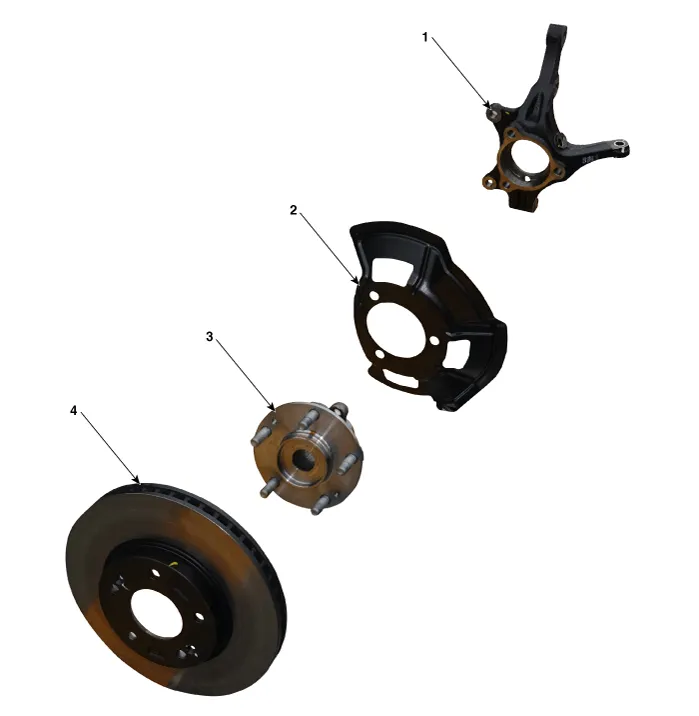

| Components |
| 1. Front knuckle 2. Dust cover | 3. Hub bearing 4. Brake disc |
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub.
