Hyundai Elantra (CN7): SRSCM / Seat Belt Buckle Switch (BS)

Hyundai Elantra (CN7) 2021-2026 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS)

Description and operation

Description

•	The SRSCM should detect the condition of seat belt buckles (BS) of the driver and passenger seats.

•	The SRSCM provides two pins to each side, in order to enter the condition of seat belt buckles (BS) of the driver and passenger seats.

•	The seat belt buckle circuit is operated using internal boost voltage supplied by the SRSCM, and uses body ground for signal return.

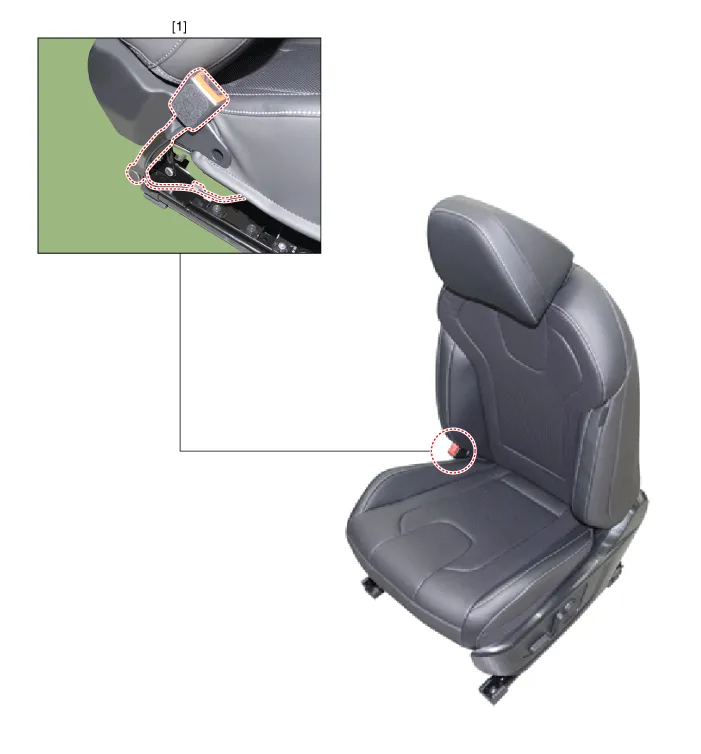

Components and components location

Components

1. Seat belt buckle switch (BS)

Repair procedures

Removal

Disconnect the negative (-) battery terminal.

•	Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2.	Remove the front seat assembly. (Refer to Body (Interior and Exterior) - "Front Seat Assembly")

3.	Disconnect the front seat belt buckle connector wiring (A).

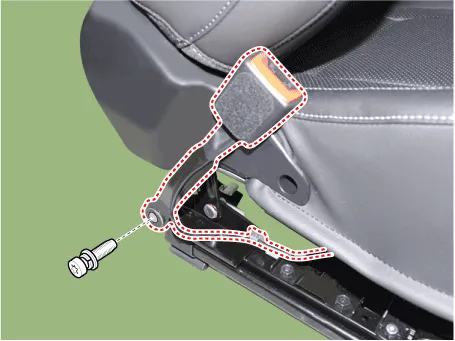

Remove the front seat belt buckle (A) after loosening the monuting bolt.

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

To install, reverse the removal procedures.

•	Replace damaged clip.

•	Assemble the connector securely.

•	When the ignition switch is turned on after installing the airbag, check that the warning light turns on for about 6 seconds and then goes out.
