Hyundai Elantra: Front Door / Front Door Latch

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Latch

Components and components location

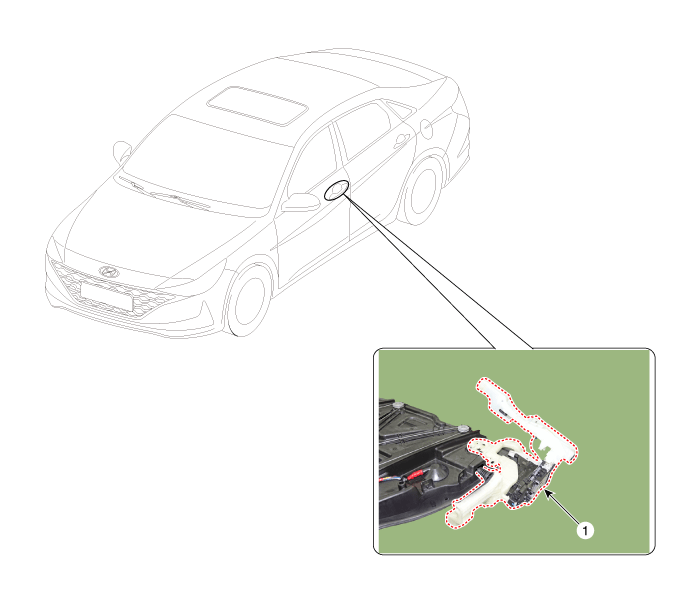

Component Location

1. Front door latch

Repair procedures

Replacement

1.	Remove the front door module. (Refer to Front Door - "Front Door Module")

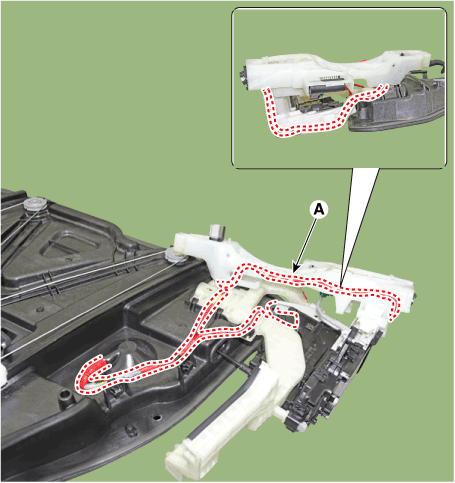

2.	Remove the front door inside handle cage (A) by pulling it in the direction of the arrow.

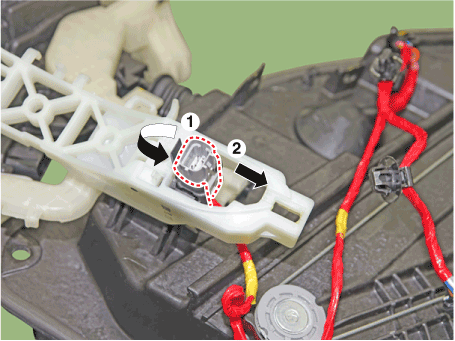

3.	Separate the front door outside handle base connector (A).

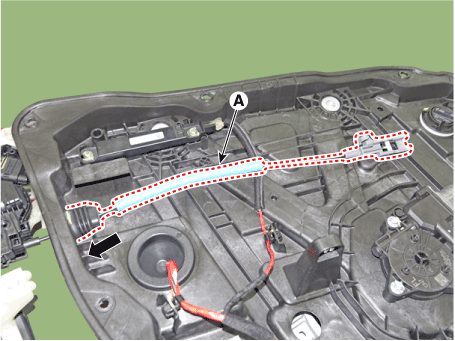

4.	Separate the front door outside handle connector wiring harness (A).

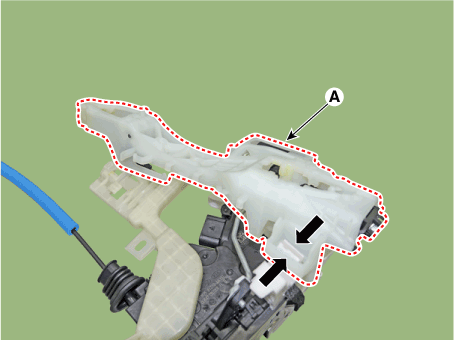

5.	Remove the front door latch assembly (A) by pulling it in the direction of the arrow.

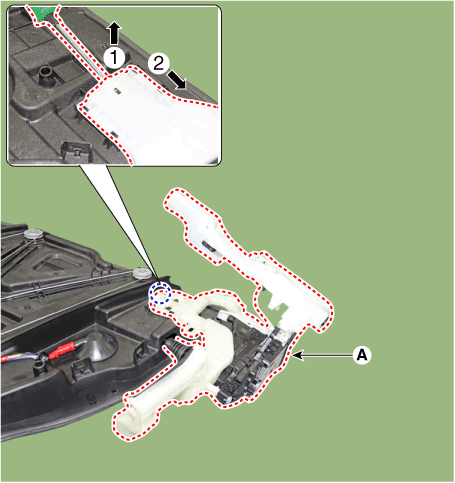

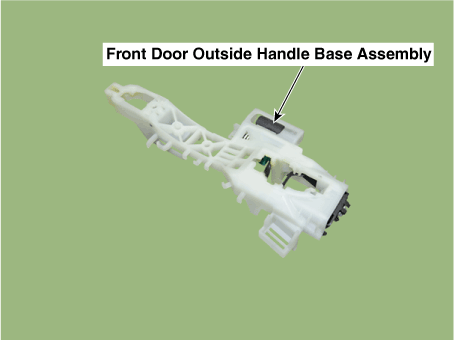

6.	Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

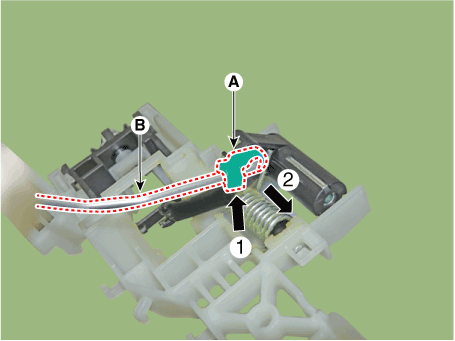

7.	Slide the locking pin (A) in the direction of the arrow to release the lock and then remove the rod (B).

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin - type retainers).
