Hyundai Elantra: Smart Cruise Control (SCC) / Function malfunction and limitations

Function malfunction

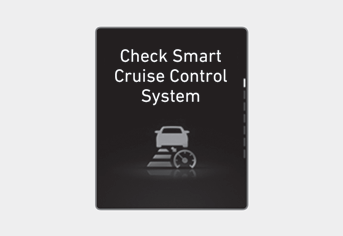

When Smart Cruise Control is not working properly, the ‘Check Smart Cruise Control system’ warning message will appear, and the warning light will illuminate on the cluster. We recommend that the function be inspected by an authorized HYUNDAI dealer.

Function disabled

When the front radar cover or sensor is covered with snow, rain, or foreign material, it can reduce the detecting performance and temporarily limit or disable Smart Cruise Control.

If this occurs the ‘Smart Cruise Control disabled. Radar blocked’ warning message will appear for a certain period of time on the cluster.

The system will operate normally when snow, rain or foreign material is removed.

WARNING

  • Even though the warning message does not appear on the cluster, Smart Cruise Control may not properly operate.
  • Smart Cruise Control may not properly operate in an area (e.g. open terrain), where there is nothing to detect after turning ON the engine.

Limitations of the function

Smart Cruise Control may not operate normally, or the system may operate unexpectedly under the following circumstances:

  • The detecting sensor or the surroundings are contaminated or damaged
  • Washer fluid is continuously sprayed, or the wiper is on
  • The camera lens is contaminated due to tinted, filmed or coated windshield, damaged glass, or stuck of foreign material (sticker, bug, etc.) on the glass
  • Moisture is not removed or frozen on the windshield
  • The field of view of the front view camera is obstructed by sun glare
  • Street light or light from an oncoming vehicle is reflected on the wet road surface, such as a puddle on the road
  • The temperature around the front view camera is high or low
  • An object is placed on the dashboard
  • The surrounding is very bright
  • The surrounding is very dark, such as in a tunnel, etc.
  • The brightness changes suddenly, for example when entering or exiting a tunnel
  • The brightness outside is low, and the headlamps are not on or are not bright
  • Driving in heavy rain or snow, or thick fog
  • Driving through steam, smoke or shadow
  • Only part of the vehicle is detected
  • The vehicle in front has no tail lights, tail lights are located unusually, etc.
  • The brightness outside is low, and the tail lamps are not on or are not bright
  • The rear of the front vehicle is small or does not look normal (i.e. tilted, overturned, etc.)
  • The front vehicle’s ground clearance is low or high
  • A vehicle suddenly cuts in front
  • Your vehicle is being towed
  • Driving through a tunnel or iron bridge
  • Driving near areas containing metal substances, such as a construction zone, railroad, etc.
  • A material is near that reflects very well on the front radar, such as a guardrail, nearby vehicle, etc.
  • The bumper around the front radar is impacted, damaged or the front radar is out of position
  • The temperature around the front radar is high or low
  • Driving in large areas where there are few vehicles or structures (i.e. desert, meadow, suburb, etc.)
  • The vehicle in front is made of material that does not reflect on the front radar
  • Driving near a highway (or motorway) interchange or tollgate
  • Driving on a slippery surface due to snow, water puddle, ice, etc.
  • Driving on a curved road
  • The vehicle in front is detected late
  • The vehicle in front is suddenly blocked by a obstacle
  • The vehicle in front suddenly changes lane or suddenly reduces speed
  • The vehicle in front is bent out of shape
  • The front vehicle’s speed is fast or slow
  • With a vehicle in front, your vehicle changes lane at low speed
  • The vehicle in front is covered with snow
  • Unstable driving
  • You are on a roundabout and the vehicle in front is not detected
  • You are continuously driving in a circle
  • Driving in a parking lot
  • Driving through a construction area, unpaved road, partial paved road, uneven road, speed bumps, etc.
  • Driving on an incline road, curved road, etc.
  • Driving through a roadside with trees or streetlights
  • The adverse road conditions cause excessive vehicle vibrations while driving
  • Your vehicle height is low or high due to heavy loads, abnormal tire pressure, etc.
  • Driving through a narrow road where trees or grass are overgrown
  • There is interference by electromagnetic waves, such as driving in an area with strong radio waves or electrical noise

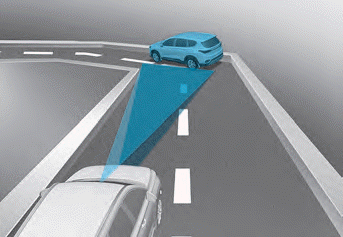

• Driving on a curve

On curves, Smart Cruise Control may not detect a vehicle in the same lane, and may accelerate to the set speed. Also, vehicle speed may rapidly decrease when the vehicle ahead is detected suddenly.

Select the appropriate set speed on curves and apply the brake pedal or accelerator pedal according to the road and driving conditions ahead.

Your vehicle speed can be reduced due to a vehicle in the adjacent lane.

Apply the accelerator pedal and select the appropriate set speed. Check to be sure that the road conditions permit safe operation of the Smart Cruise Control.

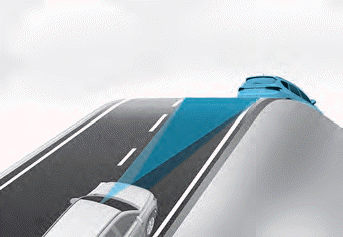

• Driving on a slope

During uphill or downhill driving, the Smart Cruise Control may not detect a moving vehicle in your lane, and cause your vehicle to accelerate to the set speed. Also, vehicle speed will rapidly decrease when the vehicle ahead is detected suddenly.

Select the appropriate set speed on inclines and apply the brake pedal or accelerator pedal according to the road and driving conditions ahead.

• Changing lanes

[A] : Your vehicle, [B] : Lane changing vehicle

When a vehicle moves into your lane from an adjacent lane, it cannot be detected by the sensor until it is in the sensor's detection range. Smart Cruise Control may not immediately detect the vehicle when the vehicle changes lanes abruptly. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

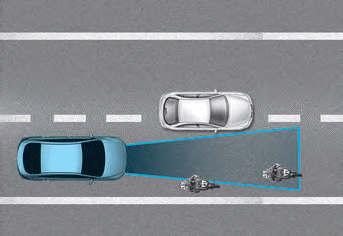

• Detecting vehicle

In the following cases, some vehicles in your lane cannot be detected by the sensor:

-- Vehicles offset to one side
-- Slow-moving vehicles or suddendecelerating vehicles
-- Oncoming vehicles
-- Stopped vehicles
-- Vehicles with small rear profile, such as trailers
-- Narrow vehicles, such as motorcycles or bicycles
-- Special vehicles
-- Animals and pedestrians

Adjust your vehicle speed by depressing the brake pedal according to the road and driving conditions ahead.

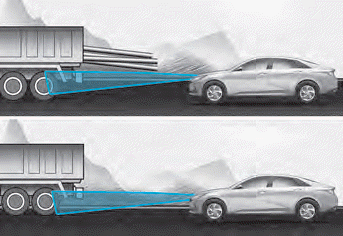

In the following cases, the vehicle in front cannot be detected by the sensor:

-- Vehicles with higher ground clearance or vehicles carrying loads that stick out of the back of the vehicle
-- Vehicles that has the front lifted due to heavy loads
-- You are steering your vehicle
-- Driving on narrow or sharply curved roads

Adjust your vehicle speed by depressing the brake pedal according to the road and driving conditions ahead.

• When a vehicle ahead disappears at an intersection, your vehicle may accelerate.

Always pay attention to road and driving conditions while driving.

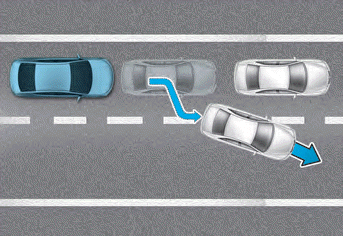

• When a vehicle in front of you merges out of the lane, Smart Cruise Control may not immediately detect the new vehicle that is now in front of you.

Always pay attention to road and driving conditions while driving.

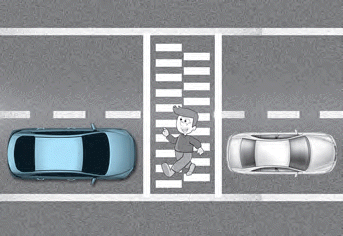

• Always look out for pedestrians when your vehicle is maintaining a distance with the vehicle ahead.

Information

This device complies with Part 15 of the FCC rules.

Operation is subject to the following three conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

3. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.

Information

Radio frequency radiation exposure information:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance of 8 in. (20 cm) between the radiator (antenna) and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

    Function display and control

    Basic function You can see the status of the Smart Cruise Control operation in the Driving Assist mode on the cluster. Refer to “LCD Display Modes” section in chapter 4...

    Navigation-Based Smart Cruise Control (NSCC)

    Navigation-based Smart Cruise Control can help automatically adjust vehicle speed when driving on highways (or motorways) by using road information from the navigation system while Smart Cruise Control is operating...
