Hyundai Elantra: Air Bag - Advanced Supplemental Restraint System / Air Bag Warning Labels

Hyundai Elantra (CN7) 2021-2024 Owner's Manual / Seats & Safety System / Air Bag - Advanced Supplemental Restraint System / Air Bag Warning Labels

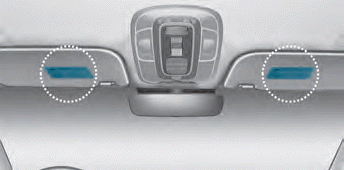

Air bag warning labels, required by the U.S. National Highway Traffic Safety Administration (NHTSA), are attached to alert the driver and passengers of potential risks of the air bag system. Be sure to read all of the information about the air bags that are installed on your vehicle in this Owners Manual.
