Hyundai Elantra (CN7): Motor Driven Power Steering / Components and components location
| Components |

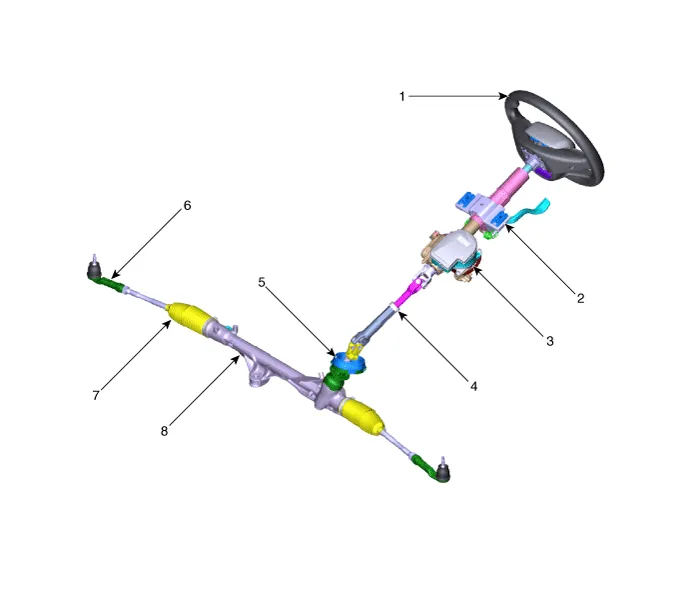

| 1. Steering wheel 2. Steering column 3. MDPS power pack 4. Universal joint | 5. Dust cap 6. Tie rod end 7. Bellows 8. Steering gear box |
Description MDPS (Motor Dirven Power Steering) system uses an electric motor to assist the steering force and it is an engine operation independent steering system.
Schematic DiagramsC-MDPSTerminal function Type Pin No Description Battery1Battery +2Battery -VSS1IGN2-3-4-5-6-7HIGH CAN8LOW CAN
