Hyundai Elantra (CN7): Parking Brake System / Components and components location
| Components |

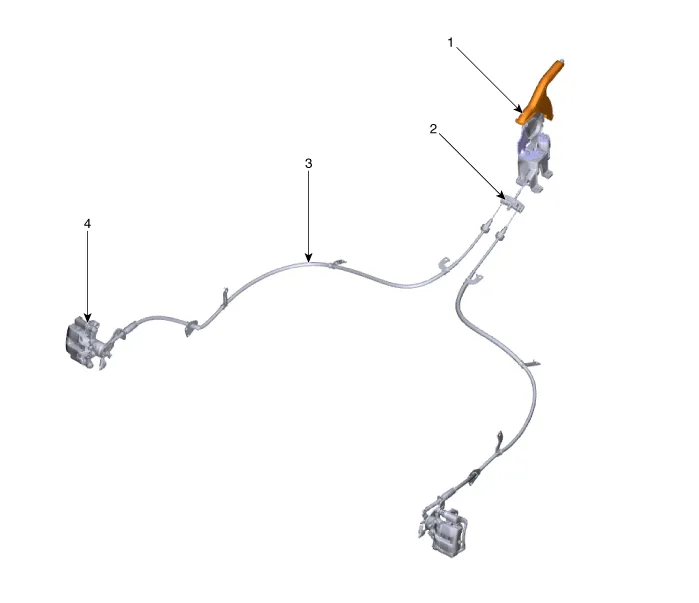

| 1. Parking brake lever 2. Equalizer assembly | 3. Parking brake cable 4. Rear caliper |

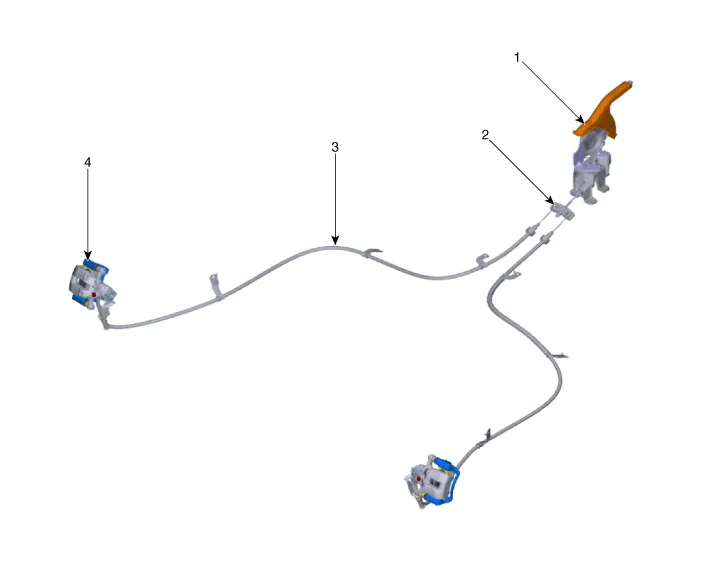

| 1. Parking brake lever 2. Equalizer assembly | 3. Parking brake cable 4. Rear caliper |
Repair procedures Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Release the parking brake.3.Remove the floor console assembly.
