Hyundai Elantra (CN7): Drive Belt System / Drive Belt Tensioner

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Repair procedures

Removal and Installation
1.
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
2.

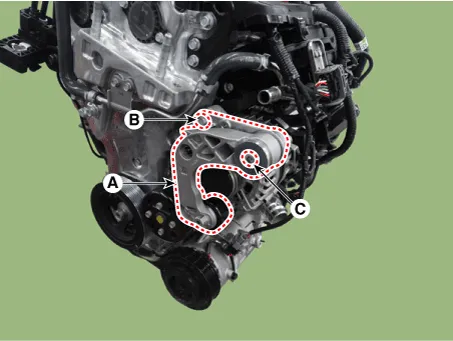

Remove the drive belt tensioner (A).
Tightening torque
Bolt (B) : 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Bolt (C) : 34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb-ft)

3.
Install in the reverse order of removal.

•
Check the belt tensioner for crack, and damage. Replace if necessary.
Inspection
Check the drive belt tensioner for excessive foreign substances, crack, damage or sticking of pivot shaft. Replace if necessary.
