Hyundai Elantra (CN7): Rear View Monitor (RVM) / Components and components location
| Component Location |

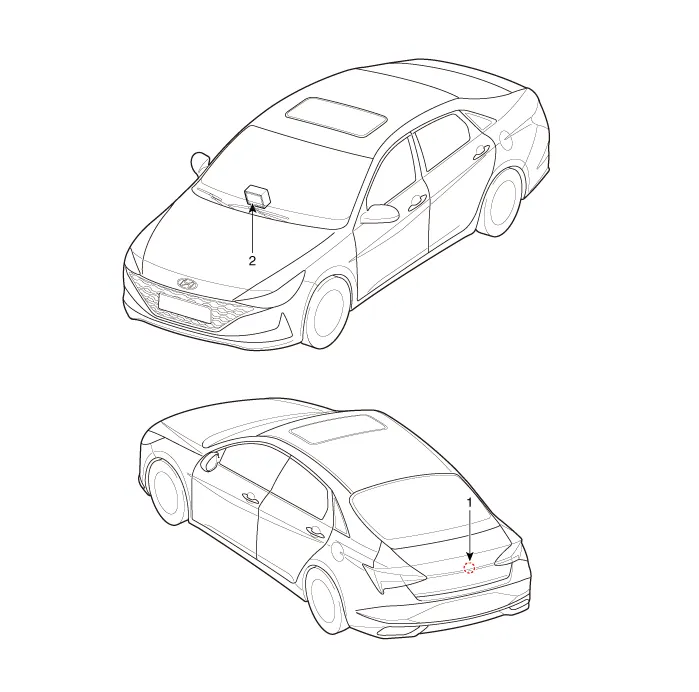

| 1. Rear view camera | 2. AVN monitor |
DescriptionRear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.This system is a supplemental system that shows behind the vehicle through the AV monitor or the ECM (Reverse Display Room Mirror) mirror while backing-up.
Circuit Diagram
Other information:
Hyundai Elantra (CN7) 2021-2025 Service Manual: Receiver-Drier
Repair procedures Replacement1.Remove the condenser.2.Remove the cap (A) on the bottom of the condenser with a L wrench. Tightening torque : 9.81 - 14.71 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft) 3.Remove the receiver-drier (A) from condenser using a long nose plier.
Hyundai Elantra (CN7) 2021-2025 Service Manual: Description and operation
Description• PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.• IBU decides the alarm level by the transmitted communication message from the slav
