Hyundai Elantra (CN7): Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM)

Description and operation

Description
Rear view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position.
This system is a supplemental system that shows behind the vehicle through the AV monitor or the ECM (Reverse Display Room Mirror) mirror while backing-up.

This system is a supplementary function only. It is the responsibility of the driver or always check the inside/ outside rear view mirror and the area behind the vehicle before and while backing up because there is a dead zone that can't see through the camera.

Components and components location

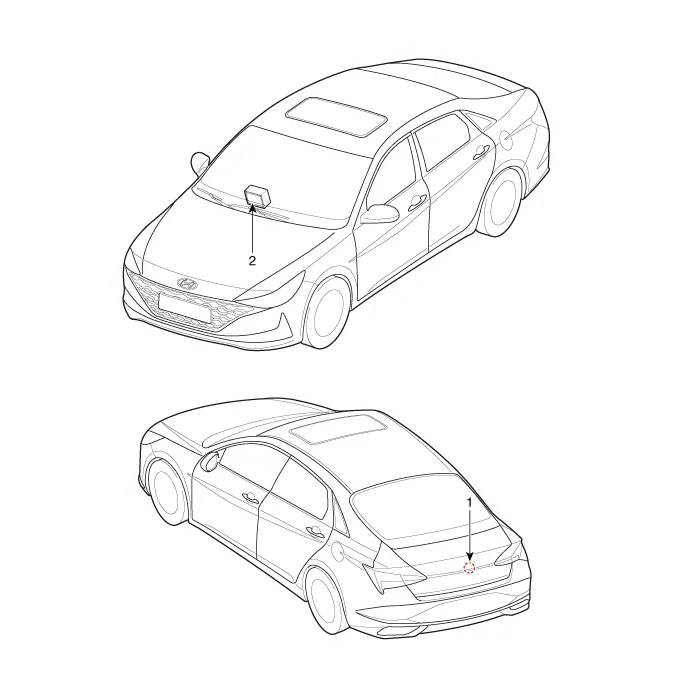

Component Location

1. Rear view camera
2. AVN monitor

Schematic diagrams

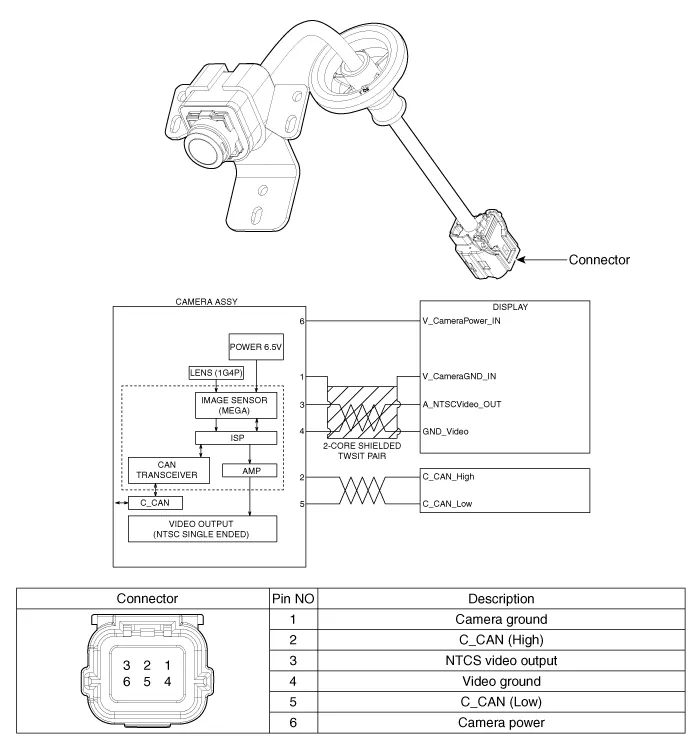

Circuit Diagram

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the trunk trim.
(Refer to Body - "Trunk Rid Trim")
3.
Remove the trunk back panel.
(Refer to Body - "Trunk back Panel")
4.

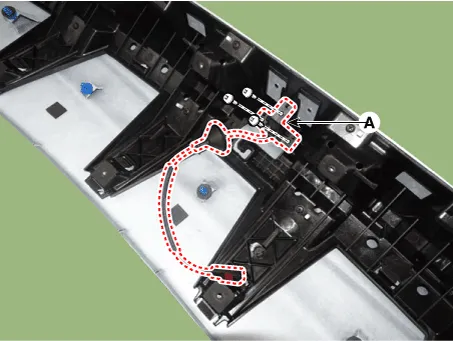

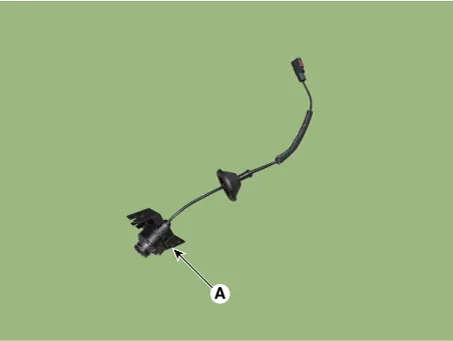

Loosen the mounting screw and then remove the rear view camera (A).

Installation
1.
Install the rear view camera.
2.
Install the and trunk back panel.
3.
Install the and trunk rid trim.
4.
Connect the negative (-) battery terminal.
