Hyundai Elantra (CN7): Manual heating and air conditioning / Fan speed control

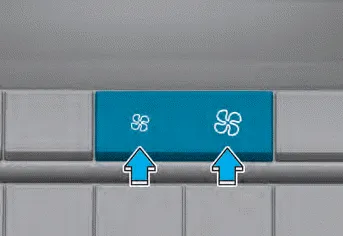

The fan speed can be set to the desired speed by using the fan speed control toggle switch.
More air is delivered with higher fan speeds.
Pressing the OFF button turns off the fan.
NOTICE
Operating the fan speed when the ignition switch is in the ON position could cause the battery to discharge. Operate the fan speed when the engine is running.
Recirculated air position With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.
Air conditioning Push the A/C button to manually turn the air conditioning system on (indicator light will illuminate). Push the button again to turn the air conditioning system off.
