Hyundai Elantra (CN7): Battery / For Best Battery Service

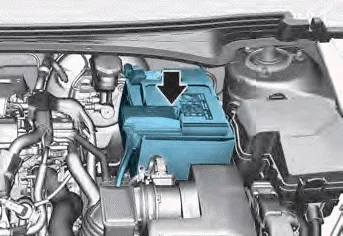

- Keep the battery securely mounted.
- Keep the battery top clean and dry.
- Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
- Rinse any spilled acid from the battery immediately with a solution of water and baking soda.
WARNING To prevent SERIOUS INJURY or DEATH to you or bystanders, always follow these precautions when working near or handling the battery: If acid gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention.
1. AGM70L-DIN: The HYUNDAI model name of battery 2. 12V : The nominal voltage 3. 70Ah (20HR): The nominal capacity (in Ampere hours) 4. RC 120min: The nominal reserve capacity (in min.
