Hyundai Elantra (CN7): Fuses / Instrument Panel Fuse Replacement
1. Turn the vehicle off.

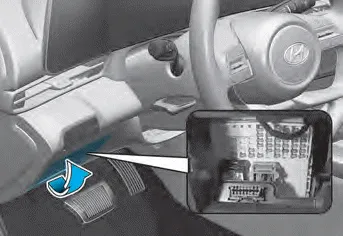

2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the engine compartment fuse panel.
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.
If the other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
If the headlamp, turn signal lamp, tail lamp, interior lamp doesn’t work and the fuses are undamaged, consult an authorized HYUNDAI dealer.
A vehicle’s electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

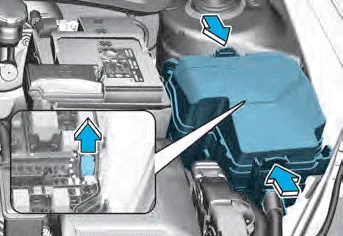

Blade type fuse Cartridge type fuse 1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up.
