Hyundai Elantra (CN7): Convenient Features / Manual Climate Control System
Type A
Type B

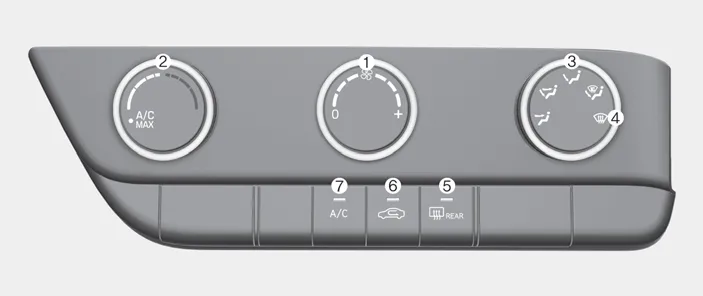

1. Fan speed control knob
2. Temperature control knob
3. Mode selection knob
4. Front windshield defroster position
5. Rear window defroster button
6. Air intake control button
7. A/C (Air conditioning) button
A. Wiper speed control MIST – Single wipe OFF – Off INT / --- – Intermittent wipe LO– Low wiper speed HI – High wiper speed B. Intermittent control wipe time adjustment C.
1. Start the engine. 2. Set the mode to the desired position. To improve the effectiveness of heating and cooling, select the mode according to the following: -- Heating: -- Cooling: 3.
