Hyundai Elantra (CN7): Head Restraints / Rear seat head restraints

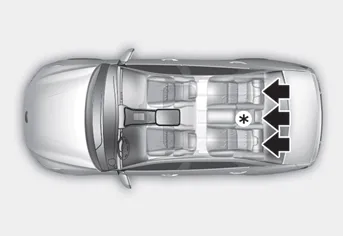

The rear seats are equipped with head restraints in all the seating positions for the passenger’s safety and comfort.

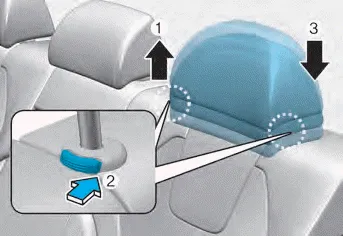

Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1). To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
Both the driver’s and passenger’s front seat are equipped with adjustable head restraints for the safety and comfort. Adjusting the height up and down To raise the head restraint: 1.
Front seat warmers Seat warmers are provided to warm the seats during cold weather. WARNING The seat warmers can cause a SERIOUS BURN, even at low temperatures and especially if used for long periods of time.
