| Components |

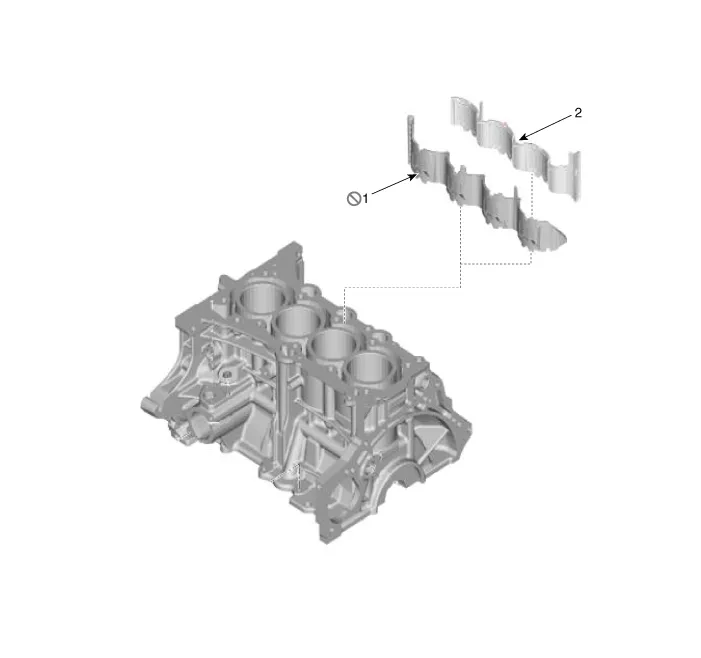

| 1. LH Water jacket insert | 2. RH Water jacket insert |
| Removal and Installation |
| 1. | Remove the cylinder head. (Refer to Cylinder Head Assembly - "Cylinder Head") |

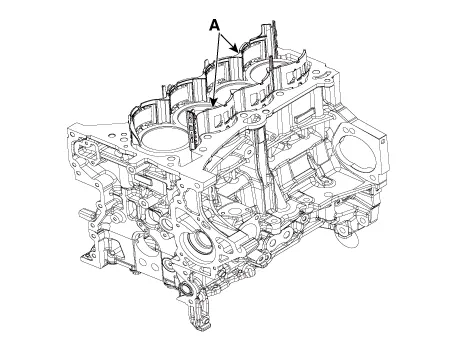

| 2. | Remove the RH water jacket insert and LH water jacket insert (A).
|
| 3. | Install in the reverse order of removal.
|
