Hyundai Elantra (CN7): Cylinder Block / Fly Wheel
Repair procedures
| Removal and Installation |
| 1. | Remove the automatic transaxle. (Refer to Manual Transaxle System - "Manual Transaxle") (Refer to DCT (Dual Clutch Transmission) System - "Dual Clutch Transmission Assembly") |

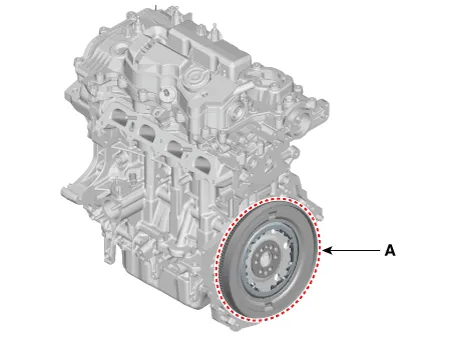

| 2. | Remove the fly wheel (A).
|
| 3. | Install in the reverse order of removal. |
Components and components location Components1. LH Water jacket insert2. RH Water jacket insert Repair procedures Removal and Installation1.
Components and components location Components1. Rear oil seal Repair procedures Replacement1.Remove the drive plate.(Refer to Cylinder Block - "Drive Plate")2.
Other information:
Hyundai Elantra (CN7) 2021-2026 Service Manual: Compressor
Description and operation DescriptionThe compressor is the power unit of the A/C system.It is located on the side of engine block and driven by a V-belt of the engine.The compressor changes low pressure and low temperature refrigerant gas into high pressure and high temperature refrigerant gas.
Hyundai Elantra (CN7) 2021-2026 Service Manual: Mode Control Actuator
Description and operation DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
