Hyundai Elantra: ABS(Anti-Lock Brake System) / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Brake System / ABS(Anti-Lock Brake System) / Components and components location

Components

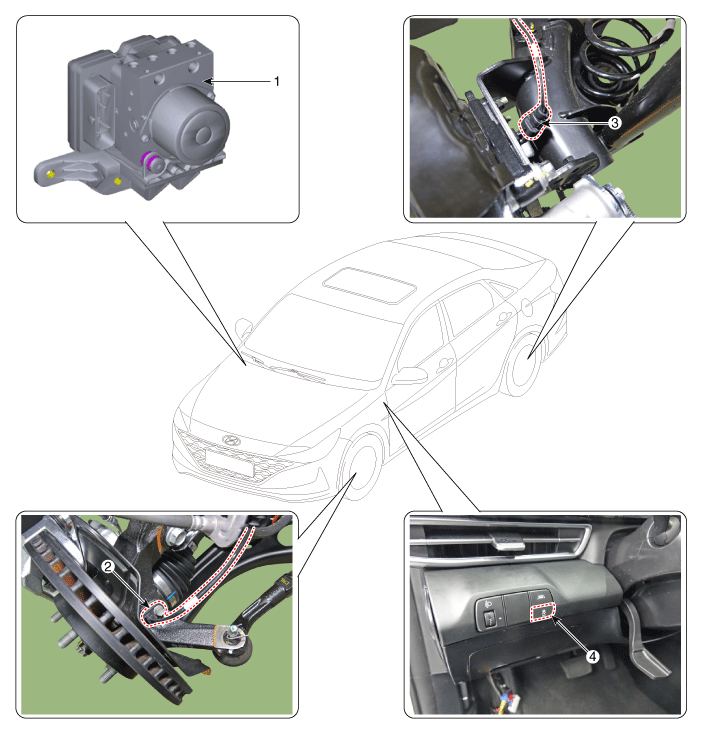

1. ABS control module (HECU) 2. Front wheel speed sensor	3. Rear wheel speed sensor 4. ESC OFF switch

Description and operation

DescriptionThis specification applies to HCU(Hydraulic Control Unit) and ECU(Electronic Control Unit) of the HECU.(Hydraulic and Electronic Control Unit)This specification is for the wiring design and installation of ABS/ESP ECU...

Troubleshooting

Standard Flow of Diagnostic TroubleshootingNotes With Regard To DiagnosisThe phenomena listed in the following table are not abnormal. Condition Explanation System check soundWhen starting the engine, a thudding sound can sometimes be heard coming from inside the engine compartment...
