Hyundai Elantra: Maintenance / Engine Oil

Checking the Engine Oil Level

1. Follow all of the oil manufacturer’s precautions.

2. Be sure the vehicle is on the level ground in P (Park) with the parking brake set. If possible, block the wheels.

3. Turn the engine on and allow the engine to reach normal operating temperature.

4. Turn the engine off and wait about five minutes for the oil to return to the oil pan.

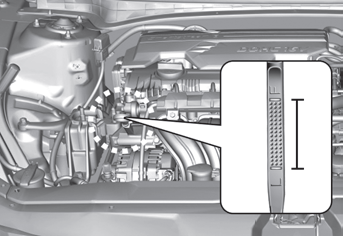

5. Pull the dipstick out, wipe it clean, and re-insert it fully.

Smartstream G2.0

6. Pull the dipstick out again and check the level. The level should be between F and L.

Smartstream G2.0

7. If it is near or at L, add enough oil to bring the level to F.

Use only the specified engine oil.

NOTICE

To prevent damage to your engine:

  • Do not overfill with engine oil. Add oil in small quantities and recheck level to ensure engine is not overfilled.
  • Do not spill engine oil when adding or changing engine oil. Use a funnel to help prevent oil from being spilled on engine components. Wipe off spilled oil immediately.

Checking the Engine Oil and Filter

Have engine oil and filter changed by an authorized HYUNDAI dealer according to the Maintenance Schedule at the beginning of this chapter.
