Hyundai Elantra: Emergency Call System / Components and components location

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Emergency Call System / Components and components location

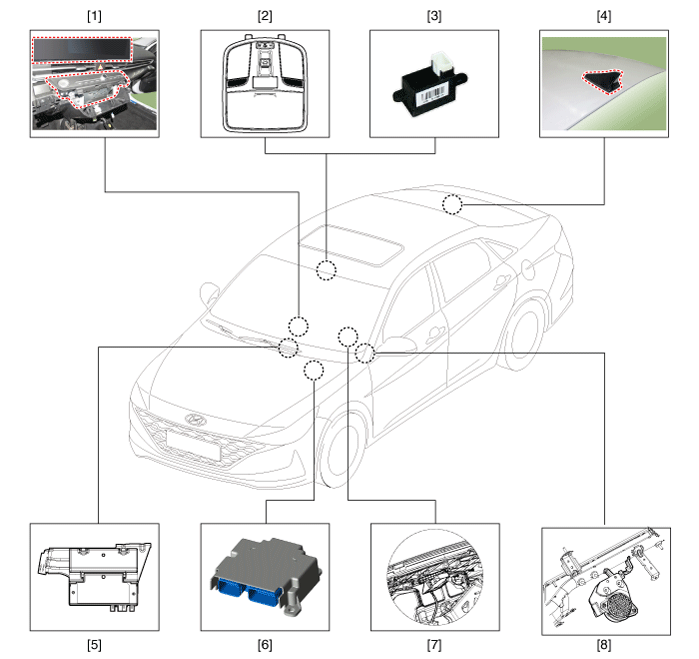

Components

1. AVN head unit & monitor
2. Emergency call system button
3. Emergency call system MIC
4. Roof antenna
5. Emergency call unit
6. Supplemental Restraint System Control Module (SRSCM)
7. Emergency call crash pad antenna
8. Emergency call speaker

    Description and operation

    DescriptionEmergency Call (eCall)When an accident occurs or the user's request is detected, it notifies the call center of the vehicle status using the wireless network so that the center can provide necessary emergency service...

    Emergency Call (eCall) Unit

    Components and components location Component    • The eCall unit for AVN is equipped in AVN head unit. Repair procedures Removal    You must make sure turn RED LED ON if you do any of the following...
