Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / IMS(Integrated Memory System) / Components and components location

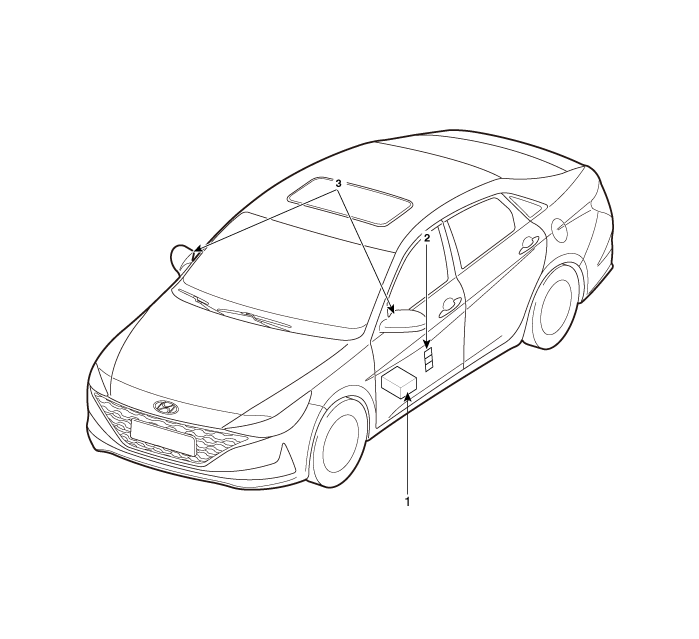

Components

1. Memory power seat unit (PSM)
2. IMS control switch

3. Outside Mirror

Description and operation

DescriptionThe changed position of the seat by memorizing into the power seat unit with IMS switch controlling the optimal seat position set by the driver can be restored with the IMS switch...

Specifications

Specifications[Memory Power Seat Unit ] Item Specifications Rated voltageDC 12VOperating VoltageDC 9V - 16VOperating Temperature Range-30°C to 75°C Dark currentMax...
