Hyundai Elantra: Forward Collision–Avoidance Assist (FCA) (front view camera only) / Function malfunction and limitations
Function malfunction
.png)

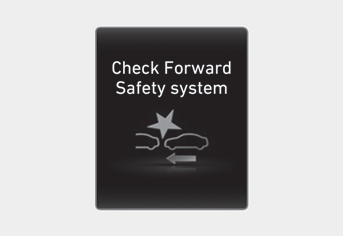

When Forward Collision-Avoidance
Assist system is not working properly,
the ‘Check Forward Safety system(s)’
warning message will appear, and the
.png)
and
.png)
warning lights will illuminate
on the cluster. We recommend that the
function be inspected by an authorized
HYUNDAI dealer.
Function operation
Basic function
Function warning and control
The basic feature of Forward Collision-
Avoidance Assist is to help warn and
control the vehicle depending on
collision level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control ’...
Function disabled
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist...
