Hyundai Elantra: Lighting System / License Lamps

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Lighting System / License Lamps

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

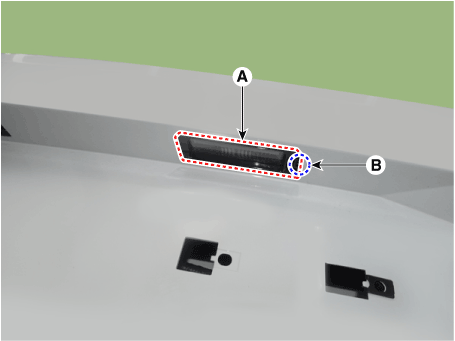

2.	Push the lock pin (B) and remove the license lamp (A).

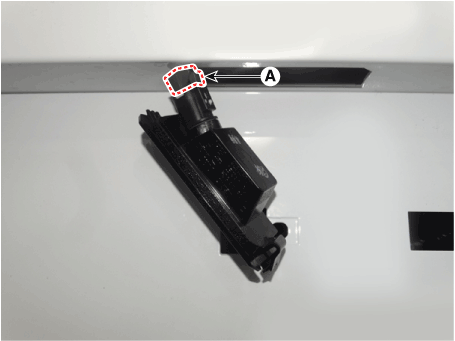

3.	Disconnect the license lamp connector (A).

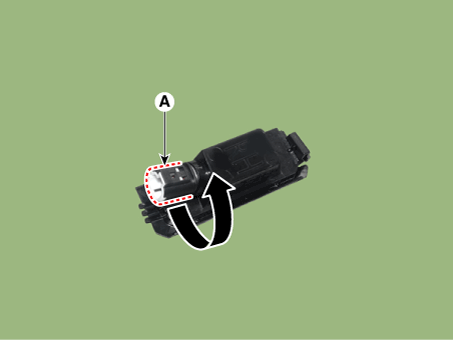

4.	Replace the bulb (A).

Installation

1.	Connect the license lamp connector.

2.	Install the license lamp.

3.	Connect the negative (-) battery terminal.
