Hyundai Elantra: Front Bumper / Components and components location
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Bumper / Components and components location
| Components |

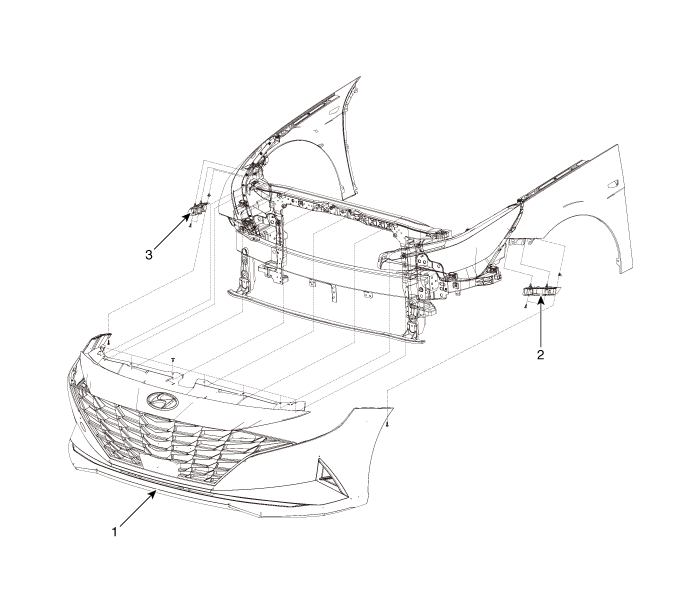

[General type]
| 1. Front bumper assembly 2. Front bumper side bracket [LH] | 3. Front bumper side bracket [RH] |

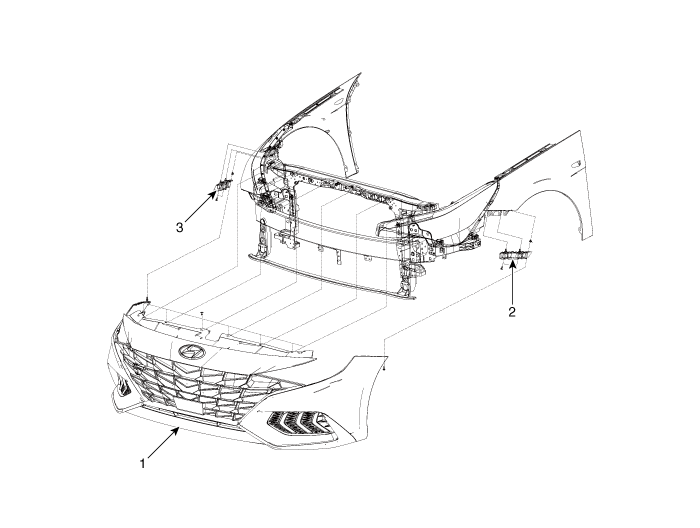

[N Line]
| 1. Front bumper assembly 2. Front bumper side bracket [LH] | 3. Front bumper side bracket [RH] |
Front Bumper
..
Front Bumper Assembly
Components and components location
Component Location [General type]1. Front bumper Assembly[N Line]1. Front bumper assembly
Repair procedures
Replacement
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
