Hyundai Elantra: Scheduled Maintenance Services / Normal Maintenance Schedule (Smartstream G2.0 Atkinson)

Hyundai Elantra (CN7) 2021-2024 Owner's Manual / Maintenance / Scheduled Maintenance Services / Normal Maintenance Schedule (Smartstream G2.0 Atkinson)

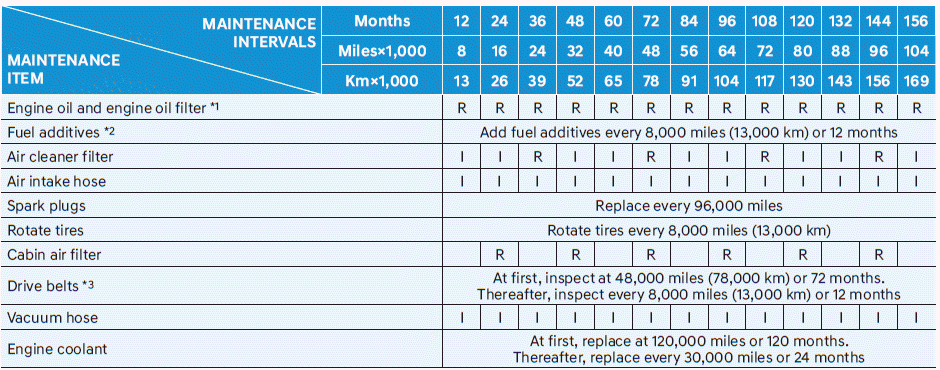

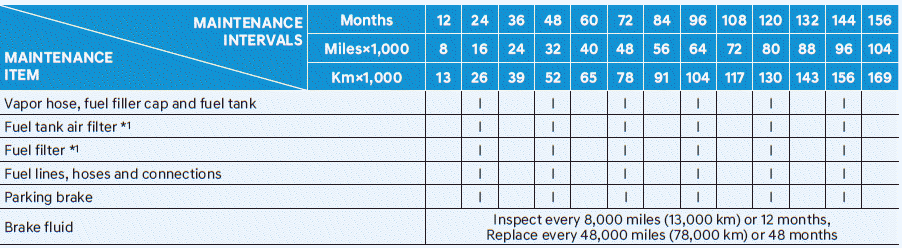

R: Replace or change.

I : Inspect and if necessary, adjust, correct, clean or replace.

    Scheduled Maintenance Services

    Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions...

    Maintenance Under Severe Usage Conditions

    The following items must be serviced more frequently on cars mainly used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals...
