Inspection
1.

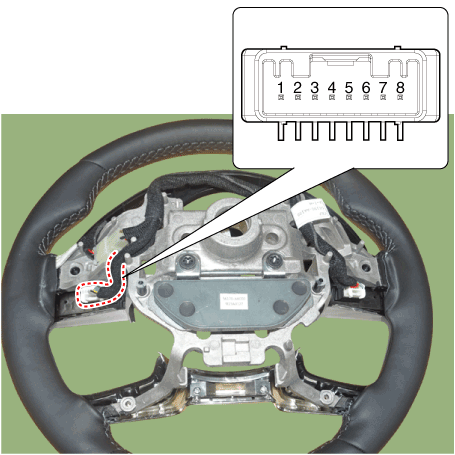

Check for resistance between terminals in each switch position (LH).

[LH : Audio + Hands free]
Switch
Resistance (±5%)
SEEK Up
430 Ω
SEEK Down
1.11 kΩ
MODE
2.11 kΩ
MUTE
3.11 kΩ
Volume (+)
4.61 kΩ
Volume (-)
6.81 kΩ
Voice
10.71 kΩ
SEND
18.91 kΩ
END
40.91 kΩ

2.

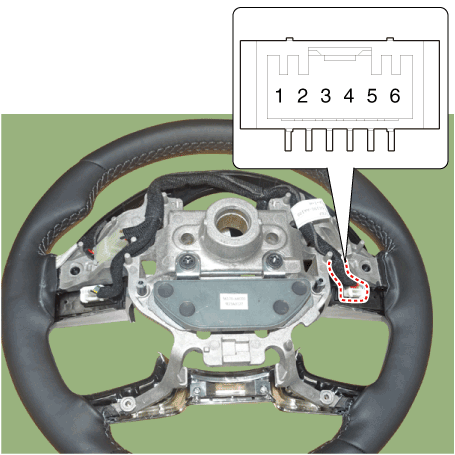

Check for resistance between terminals in each switch position (RH).

[Cruise]
Switch
Resistance (±3%)
Paddle shift (Up)
390 Ω
Cruise CANCEL
610 Ω
Cruise SET&Speed down
910 Ω
Cruise RES&Speed up
1.38 kΩ
Cruise ON/OFF
2.13 kΩ
Cruise speed limit ON/OFF
3.63 kΩ
SCC distance adjustment
7.63 kΩ

[Trip]
Switch
Resistance (±3%)
Paddle shift (Down)
390 Ω
Trip group/Trip
610 Ω
Trip (Up)
910 Ω
Trip (Down)
1.38 kΩ
OK
2.13 kΩ
BACK
3.63 kΩ
LFA
7.93 kΩ

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel assembly.
(Refer to Steering System - "Steering Wheel")
3.

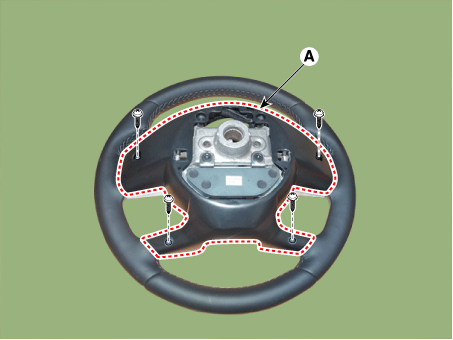

Remove the steering back cover (A).

4.

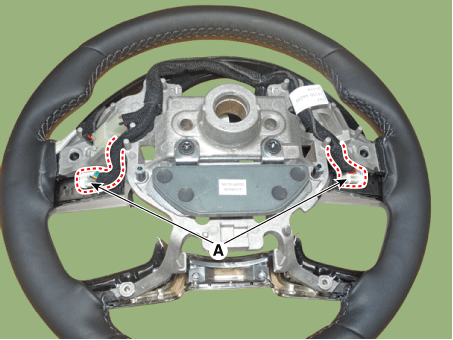

Remove the steering remote control connector (A).

5.
Remove the steering remote control(Switch (A)) after loosening the screws.

Installation
1.
Install the steering wheel remote control after connecting the connector.
2.
Install the steering wheel.
3.
Connect the negative (-) battery terminal.
