Hyundai Elantra (CN7): Parking Distance Warning (PDW) / Components and components location

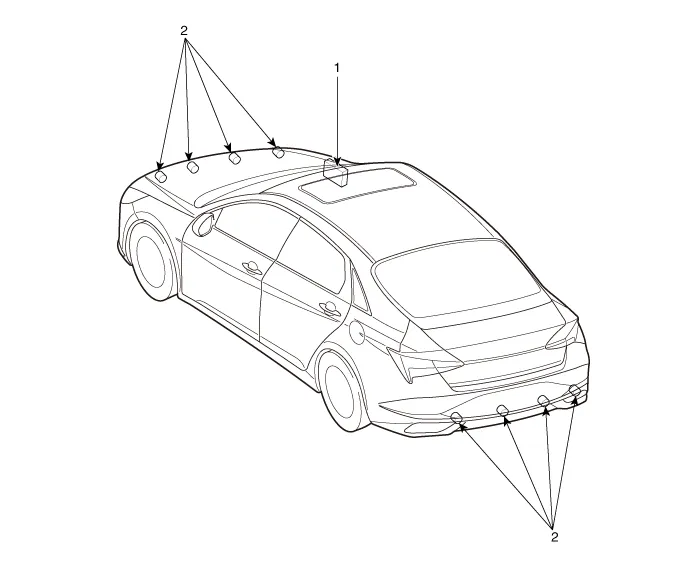

| Component Location |
| 1. Integrated body control unit (IBU) | 2. Ultrasonic sensor |
Description• PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.
Specifications Item Specification Ultrasonic sensorVoltage ratingDC 12 VDetecting range11.8 - 47.2 in.
