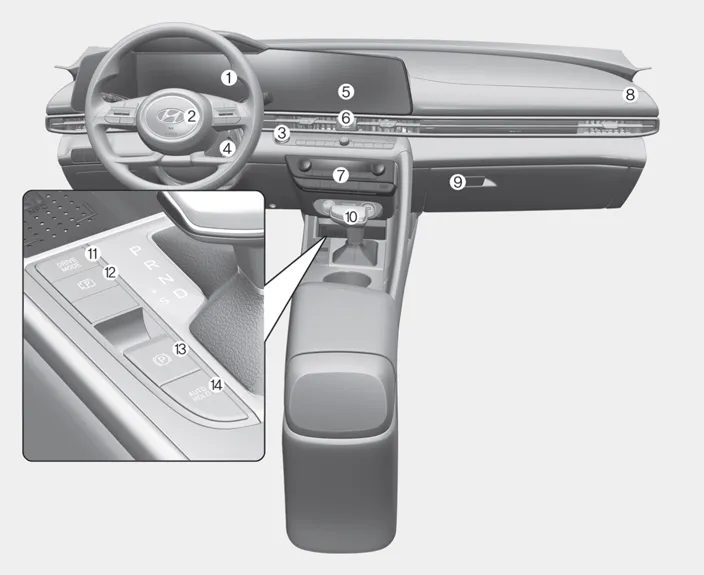

1. Instrument cluster
2. Driver’s front air bag
3. Engine start button
4. Key ignition switch
5. Infotainment system
6. Hazard warning flasher switch
7. Climate control system
8. Passenger’s front air bag
9. Glove box
10. Manual transmission/ Intelligent variable transmission
11. Drive mode button
12. Parking/View button
13. Electronic parking brake switch
14. AUTO HOLD button
