Hyundai Elantra (CN7): Vehicle Information / Interior Overview

Hyundai Elantra (CN7) 2021-2025 Owner's Manual / Vehicle Information / Interior Overview

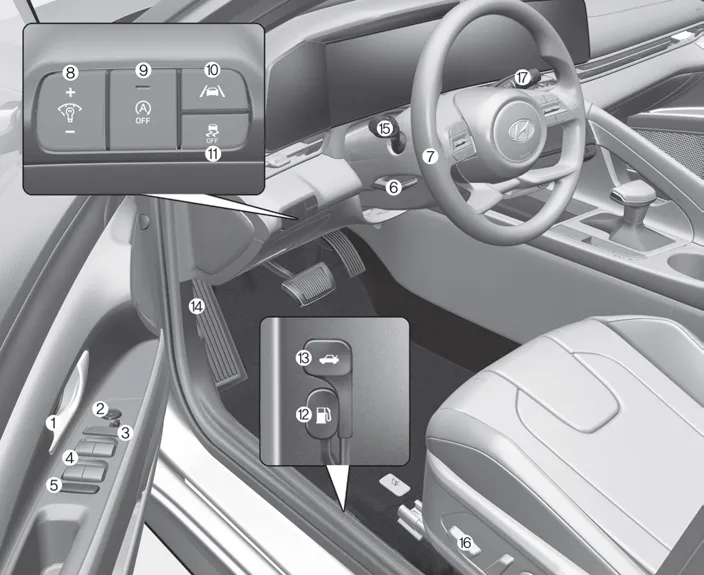

1. Inside door handle
2. Side view mirror control switch
3. Central door lock switch
4. Power window switches
5. Power window lock button
6. Steering wheel tilt/telescopic lever
7. Steering wheel
8. Instrument panel illumination control switch
9. ISG (Idle Stop & Go) OFF button
10. Lane Safety button
11. ESC OFF button
12. Fuel filler door release lever
13. Trunk release lever
14. Hood release lever
15. Light control/Turn signals
16. Seat adjusting switch
17. Wiper/washer switch

    Front view 1. Hood 2. Headlamp 3. Tires and wheels 4. Side view mirror 5. Sunroof 6. Front windshield wiper blades 7. Windows 8. Front radar Rear view 9.

    1. Instrument cluster 2. Driver’s front air bag 3. Engine start button 4. Key ignition switch 5. Infotainment system 6. Hazard warning flasher switch 7.
