Hyundai Elantra: ABS(Anti-Lock Brake System) / Schematic diagrams

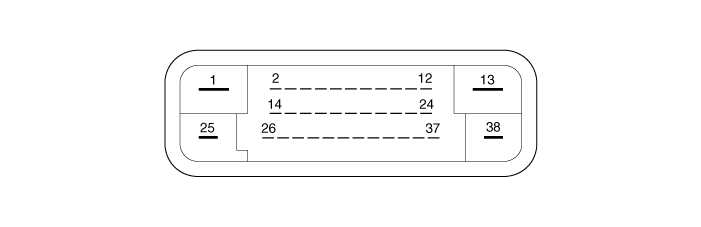

Pin No
|
Description
|
Current (AMPS)
|
Resistance (mΩ)
|
Remark
|
1
| POS. BATTERY 2. (MOTOR)
| 40A
| 10
|
|
2
| -
|
|
|
|
3
| -
|
|
|
|
4
| -
|
|
|
|
5
| -
|
|
|
|
6
| -
|
|
|
|
7
| P-CAN Low
| 100 mA
| 250
|
|
8
| P-CAN High
| 100 mA
| 250
|
|
9
| SENSOR REAR LEFT POWER
| 150 mA
| 250
|
|
10
| SENSOR REAR RIGHT POWER
| 150 mA
| 250
|
|
11
| SENSOR FRONT RIGHT POWER
| 150 mA
| 250
|
|
12
| SENSOR FRONT LEFT POWER
| 150 mA
| 250
|
|
13
| PUMP MOTOR GROUND
| 40A
| 10
|
|
14
| -
|
|
|
|
15
| -
|
|
|
|
16
| -
|
|
|
|
17
| -
|
|
|
|
18
| -
|
|
|
|
19
| -
|
|
|
|
20
| -
|
|
|
|
21
| SENSOR REAR LEFT GROUND
| 40 mA
| 250
|
|
22
| SENSOR REAR RIGHT GROUND
| 40 mA
| 250
|
|
23
| SENSOR FRONT RIGHT GROUND
| 40 mA
| 250
|
|
24
| SENSOR FRONT LEFT GROUND
| 40 mA
| 250
|
|
25
| BATTERY (+) : SOLENOID
| 30A
| 10
|
|
26
| -
|
|
|
|
27
| -
|
|
|
|
28
| -
|
|
|
|
29
| -
|
|
|
|
30
| BRAKE LIGHT SWITCH
| 1.2 mA
| 250
|
|
31
| -
|
|
|
|
32
| IGN
| 10 mA
| 50
|
|
33
| -
|
|
|
|
34
| ESS DRIVE SIGNAL
| 1.2 mA
| 250
|
|
35
| -
|
|
|
|
36
| -
|
|
|
|
37
| SENSOR FRONT RIGHT OUTPUT
| 50 mA
| 250
|
|
38
| GROUND
| 30A
| 10
|
|
