Hyundai Elantra: Windshield defrosting and defogging / Automatic climate control system

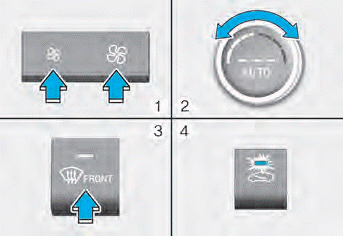

To defog inside windshield
.png)
1. Select desired fan speed.
2. Select desired temperature.
3. Press the defroster button (.png)
).
4. The air-conditioning will turn on according to the detected ambient temperature, fresh mode and higher fan speed will be selected automatically.
If the air-conditioning, fresh mode and higher fan speed are not selected automatically, adjust the corresponding button or knob manually.
If the position is selected,
lower fan
speed is controlled to higher fan speed.

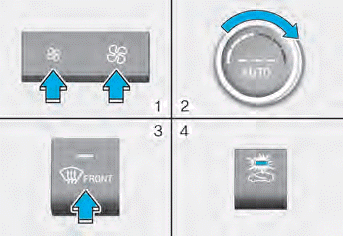

To defrost outside windshield
.png)
1. Set fan speed to the highest position.
2. Set temperature to the extreme hot (HI) position.
3. Press the defroster button ().
4. The air-conditioning will turn on according to the detected ambient temperature and fresh mode will be selected automatically.
If the position is selected,
lower fan
speed is controlled to higher fan speed.
Manual climate control system
To defog inside windshield
[A] : Type A, [B] : Type B
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the or
position...
Defogging logic
To help reduce the probability of fogging
up the inside of the windshield, the air
intake or air conditioning are controlled
automatically according to certain
conditions such as or
position...
